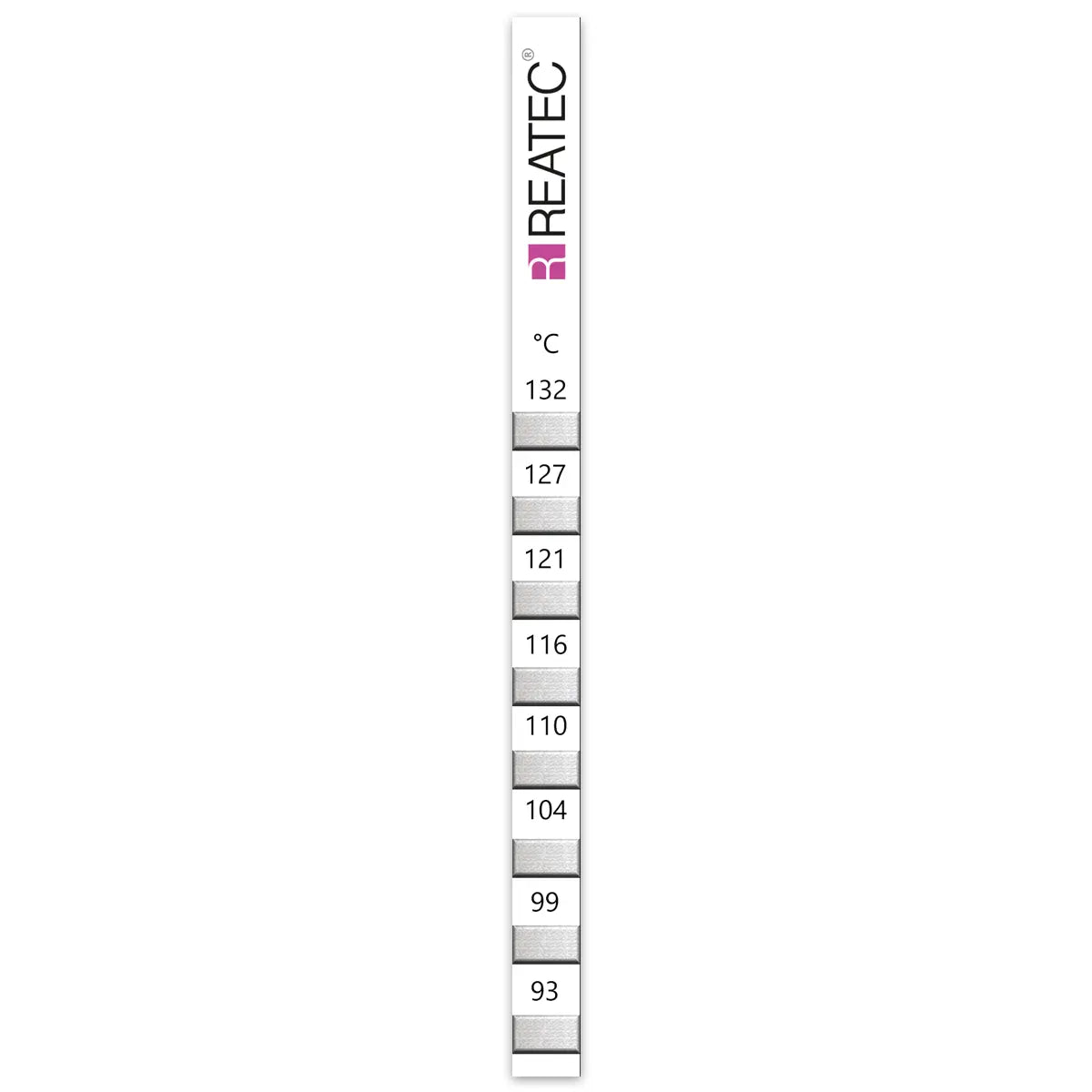

reaStripe 8 standard irreversible temperature strips 93 - 132 °C

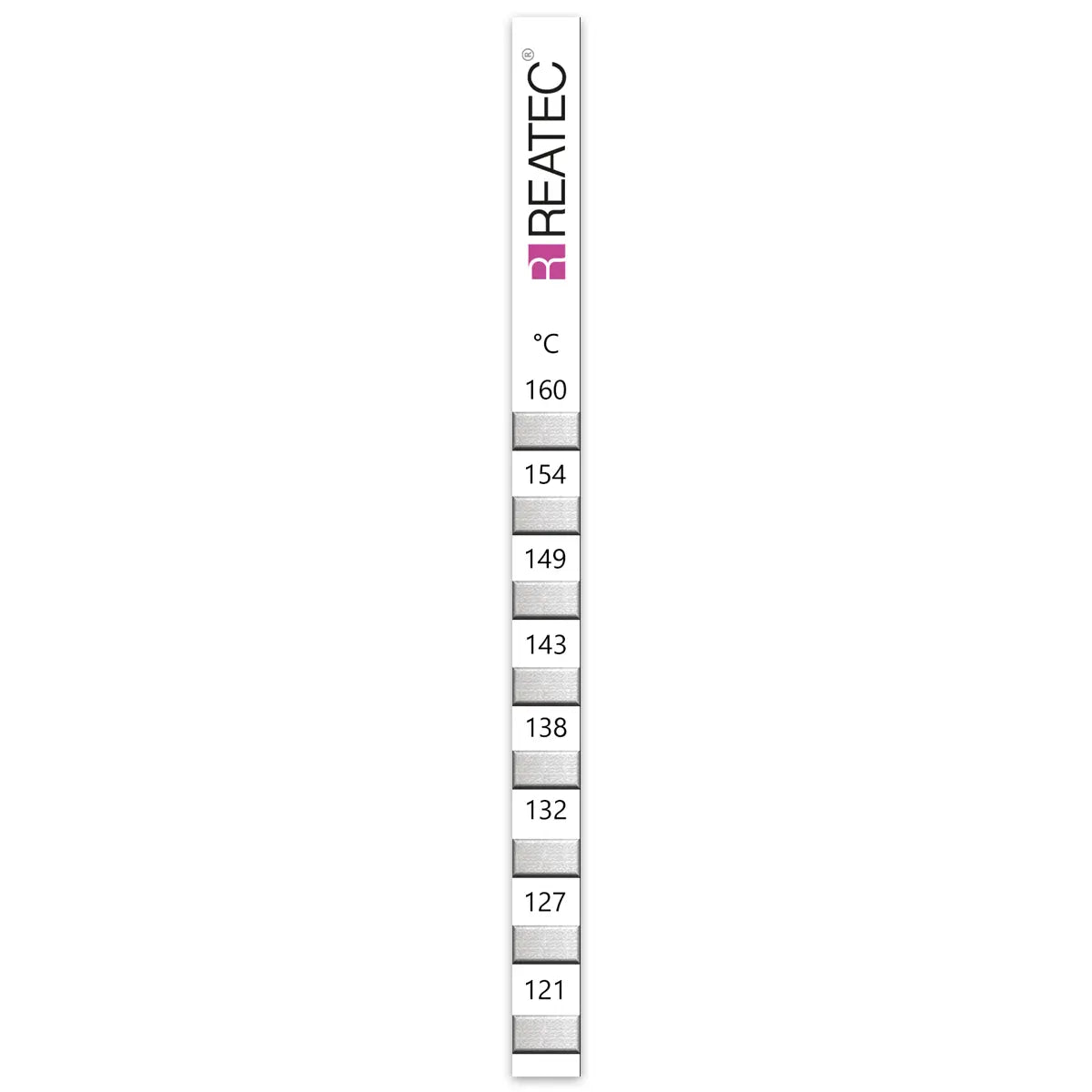

reaStripe 8 standard irreversible temperature strips 121 - 160 °C
reaStripe 8 standard irreversible temperature strips 204 - 254 °C
reaStripe 8 standard irreversible temperature strips 231 - 264 °C

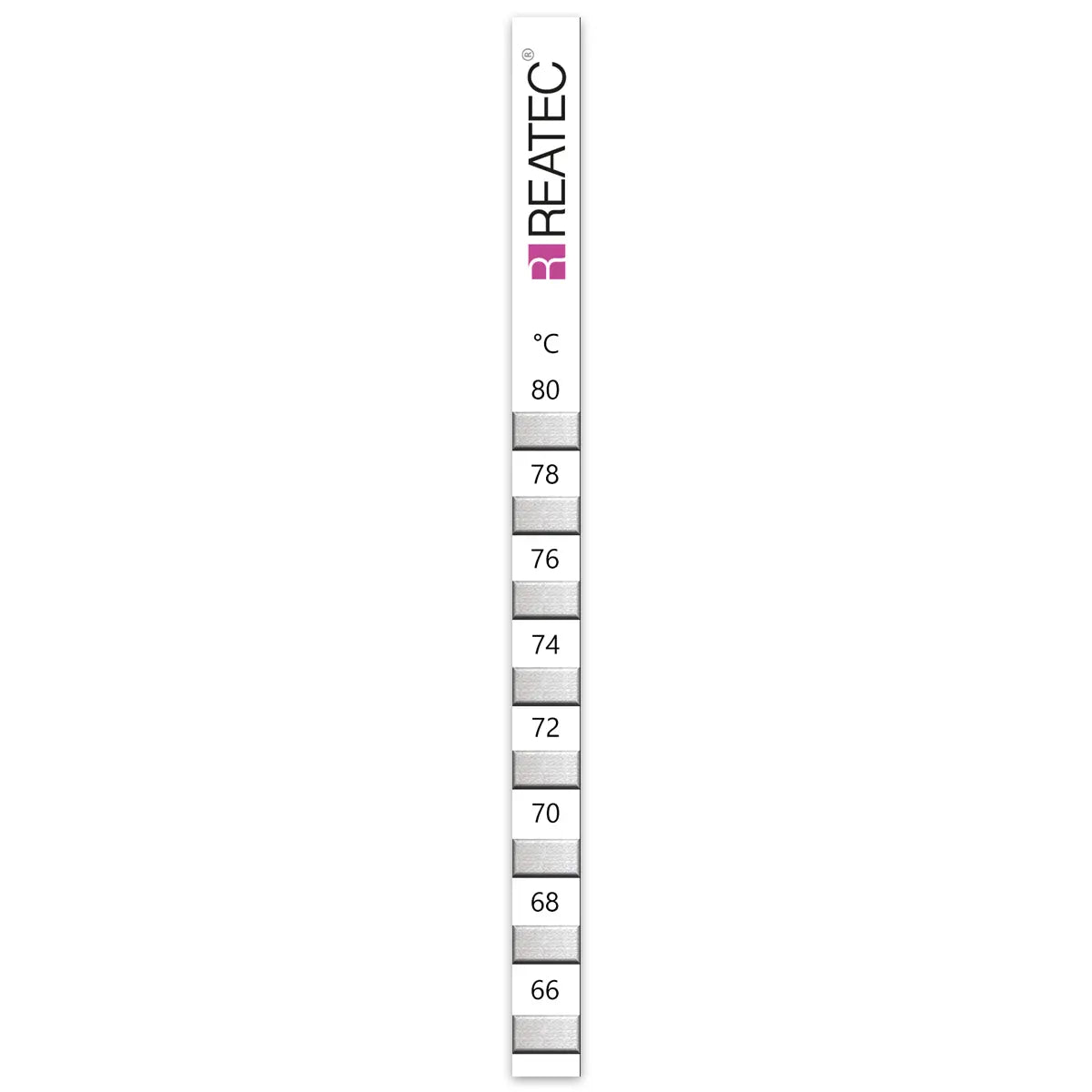

reaStripe 8 standard irreversible temperature strips 66 - 80 °C
reaStripe 8 standard irreversible temperature strips 86 - 100 °C
reaStripe 8 standard irreversible temperature strips 106 - 120 °C

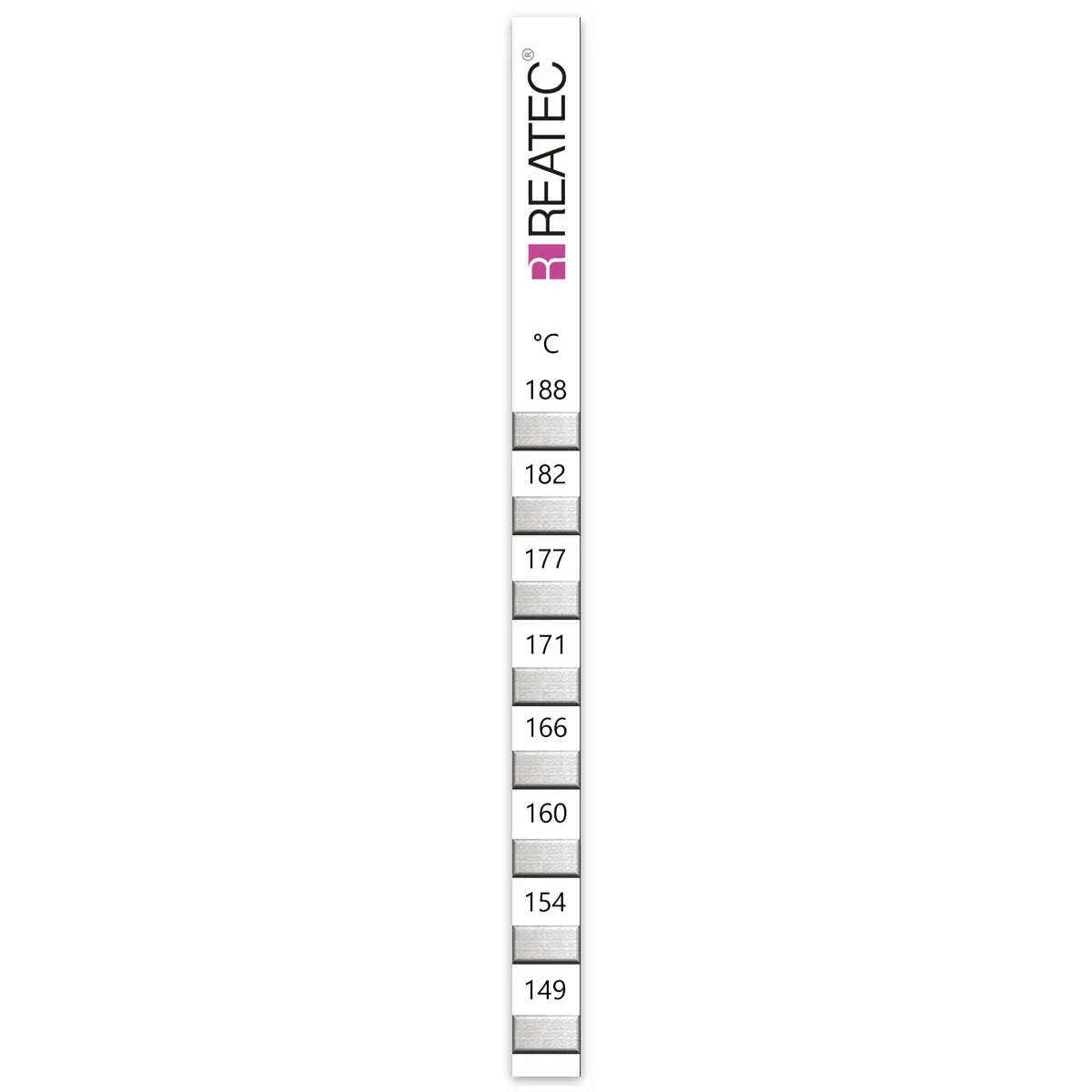

reaStripe 8 standard irreversible temperature strips 149 - 188 °C

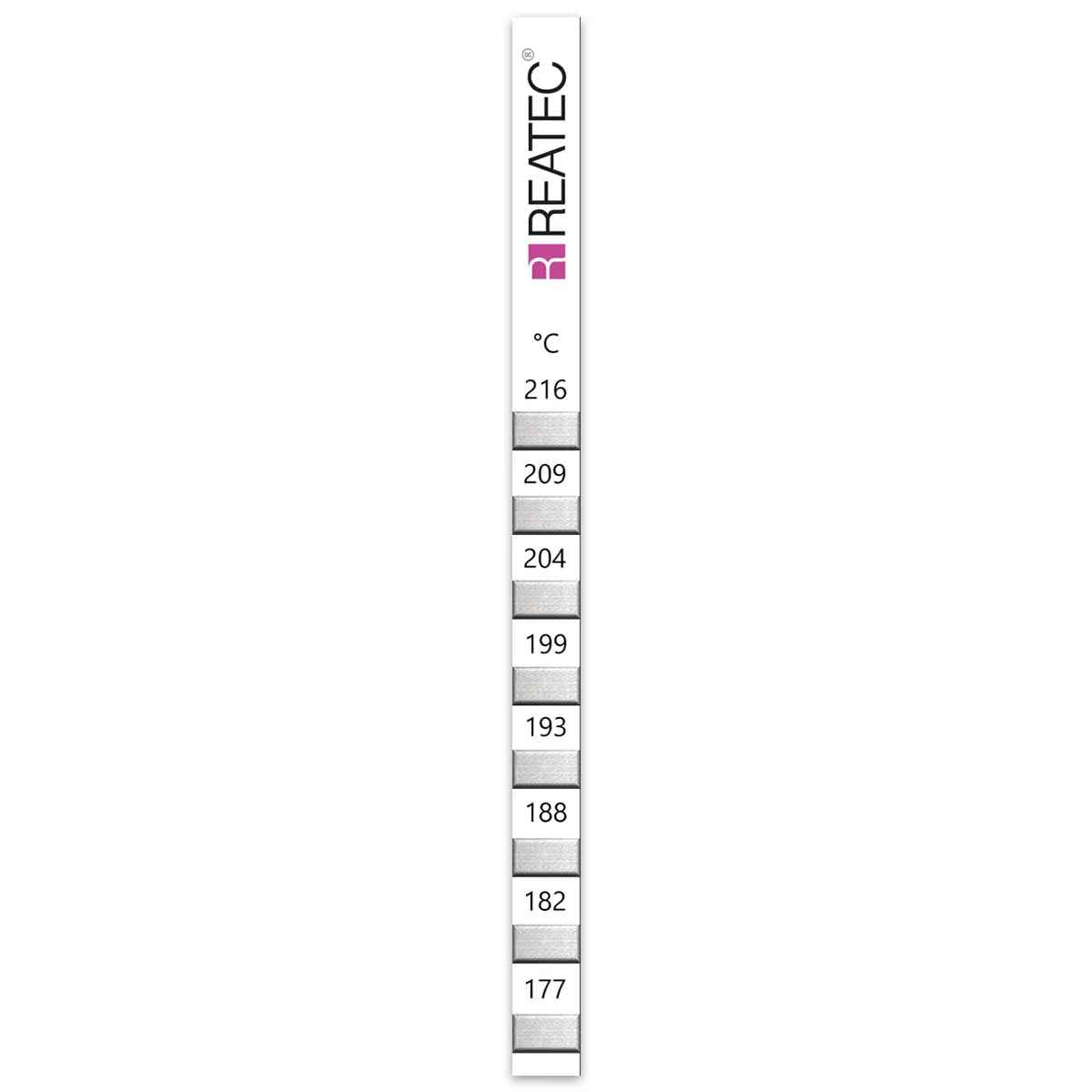

reaStripe 8 standard irreversible temperature strips 177 - 216 °C
reaStripe 8 standard irreversible temperature strips 209 - 260 °C
Reatec

reaStripe 8 standard – irreversible temperature strips

SKU: 001.SSX.08.XXX
Need a different temperature range?

No problem! Just click the button and send us a request.

3 years shelf life
Volume discount on request
Custom Design available

The reaStripe 8 standard is a self-adhesive irreversible temperature indicator strip based on a paper carrier, characterized by its cost-efficiency, small size and customizability. Once the temperature thresholds specified on the indicator are exceeded, the measuring points permanently change color. It holds eight individual points on a very slim frame, allowing for space-efficient multi-point temperature monitoring.
Product Data Sheet

Download Data Sheet for all product temperature ranges and SKU's.

Reatec Product Catalog

Download Catalog for all Reatec Products with exact temperature ranges and SKU's.

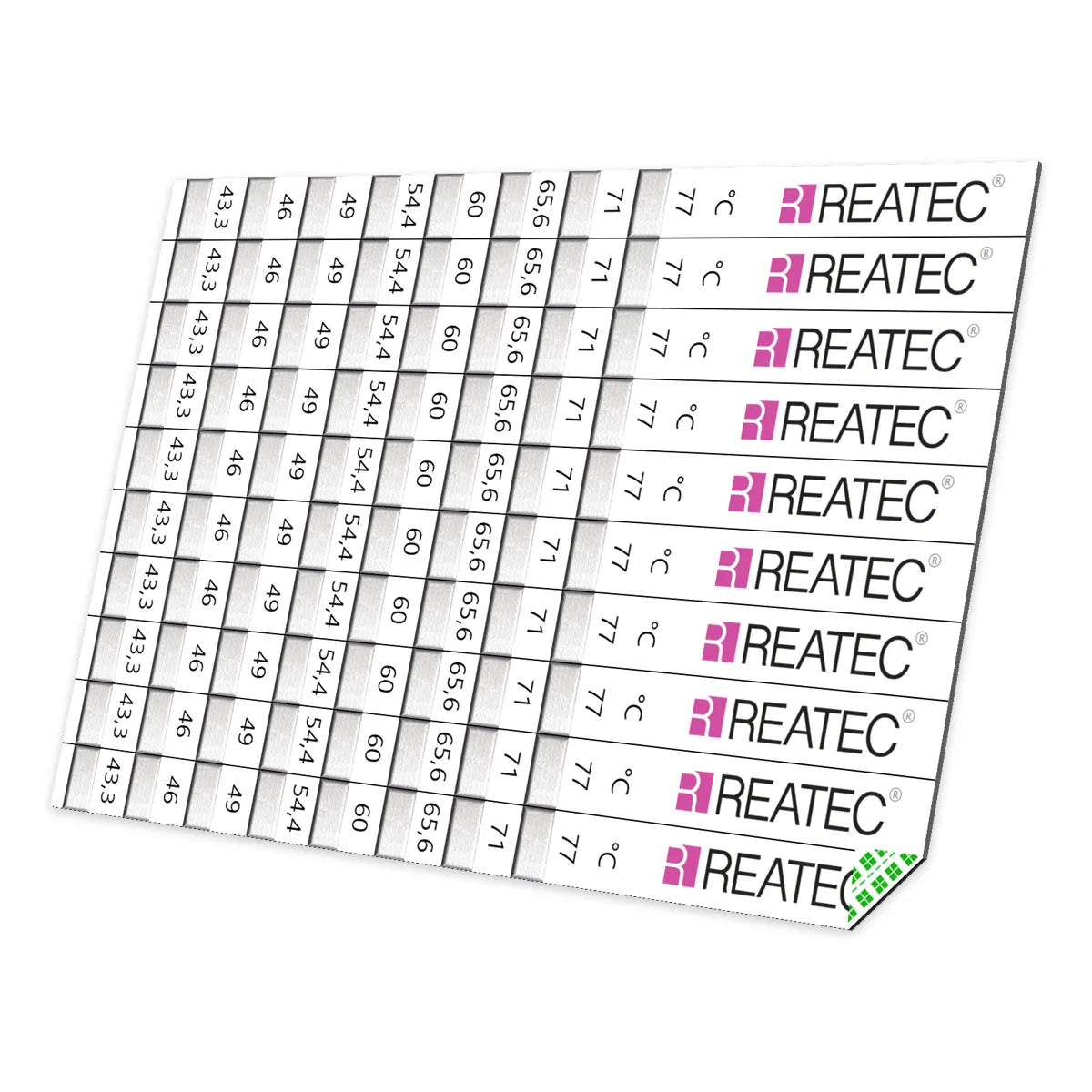

This product is supplied in booklets containing 10 indiviudal indicators.

The minimum order quantity is 30 indicators, equivalent to 3 booklets.

Temperature indicators with indicator points designed to indicate temperatures between 37 and 43 °C need to be stored in a refrigerator until use in order to ensure accurate measurements.

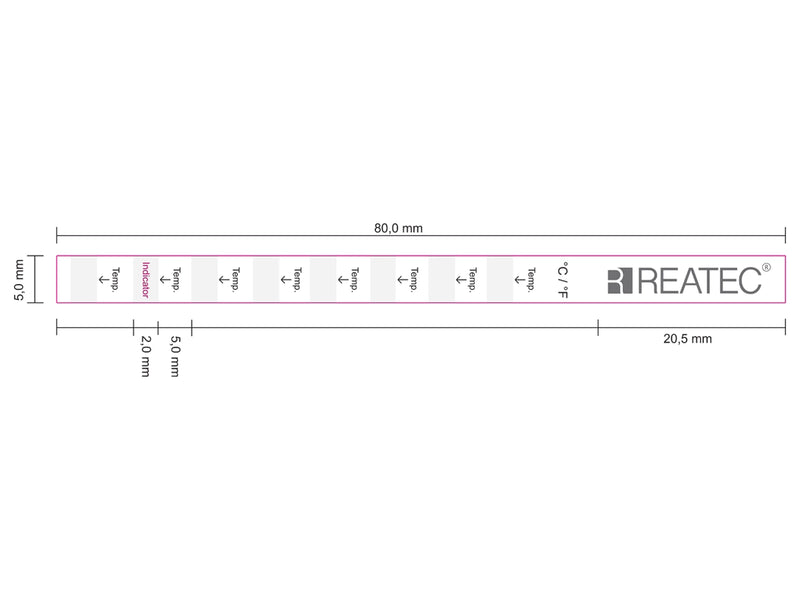

reaStripe 8 technical drawing

Technical specifications

Temperature thresholds 43,3 | 46 | 49 | 54,4 | 60 | 65,6 | 71 | 77
Material Paper
Measuring points8
Reaction time1 - 2 sec.
Protected (oil / water / solvent repelling)No
Dishwasher-safeNo
Storage conditionscool, dry

Indicator strip family

Reatec self-adhesive temperature indicator strips are suitable for almost all use cases, offering an ideal mix of a very slim design and 10 temperature thresholds on the indicator – the maximum number we offer.

Reatec temperature indicator strips are our most diverse product family. The professional strips offer the highest thermal conductivity and sturdiness in this family due to their aluminum carrier. The standard indicators are cost-efficient and highly customizable due to their paper carrier. The protected strips are designed for use in environments where they could come into contact with liquids which would normally interfere with the readings, such as water, oils, and solvents.

Temperature Range
Measuring Points
Material
Oil/Water/Solvent-Repelling
Dishwasher Safe
Dimensions
reaStripe 8 standard irreversible temperature strips 43 - 77 °C
reaStripe 8 standard – irreversible temperature strips
43,3 - 260 °C
8
Paper
No
No
5 x 80 mm
reaStripe 10 standard irreversible temperature strips 38 - 77 °C
reaStripe 10 standard – irreversible temperature strips
37,8 - 264 °C
10
Paper
No
No
5 x 95 mm
reaStripe 8 professional high accuracy irreversible temperature strips 43 - 77 °C
reaStripe 8 professional – high accuracy irreversible temperature strips
43,3 - 264 °C
8
Aluminium
No
No
5 x 80 mm
reaStripe 8 protected chemical-resistant irreversible temperature strip 43 - 77 °C
reaStripe 8 protected – chemical-resistant irreversible temperature strips
43,3 - 264 °C
8
Paper, Plastic, Kapton®
Yes
No
20 x 95 / 25 x 100 mm
