reaStripe 8 protected – chemical-resistant irreversible temperature strips

SKU: 001.SXP.08.XXX
Need a different temperature range?

No problem! Just click the button and send us a request.

3 years shelf life
Volume discount on request
Custom Design available

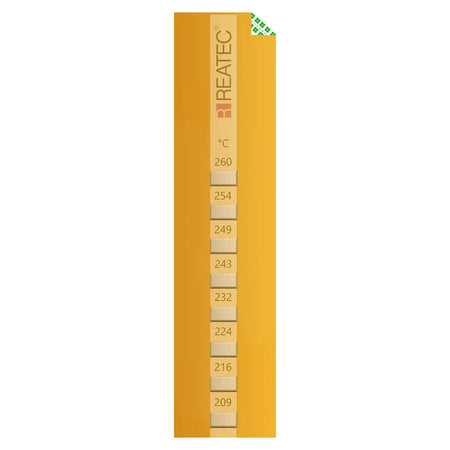

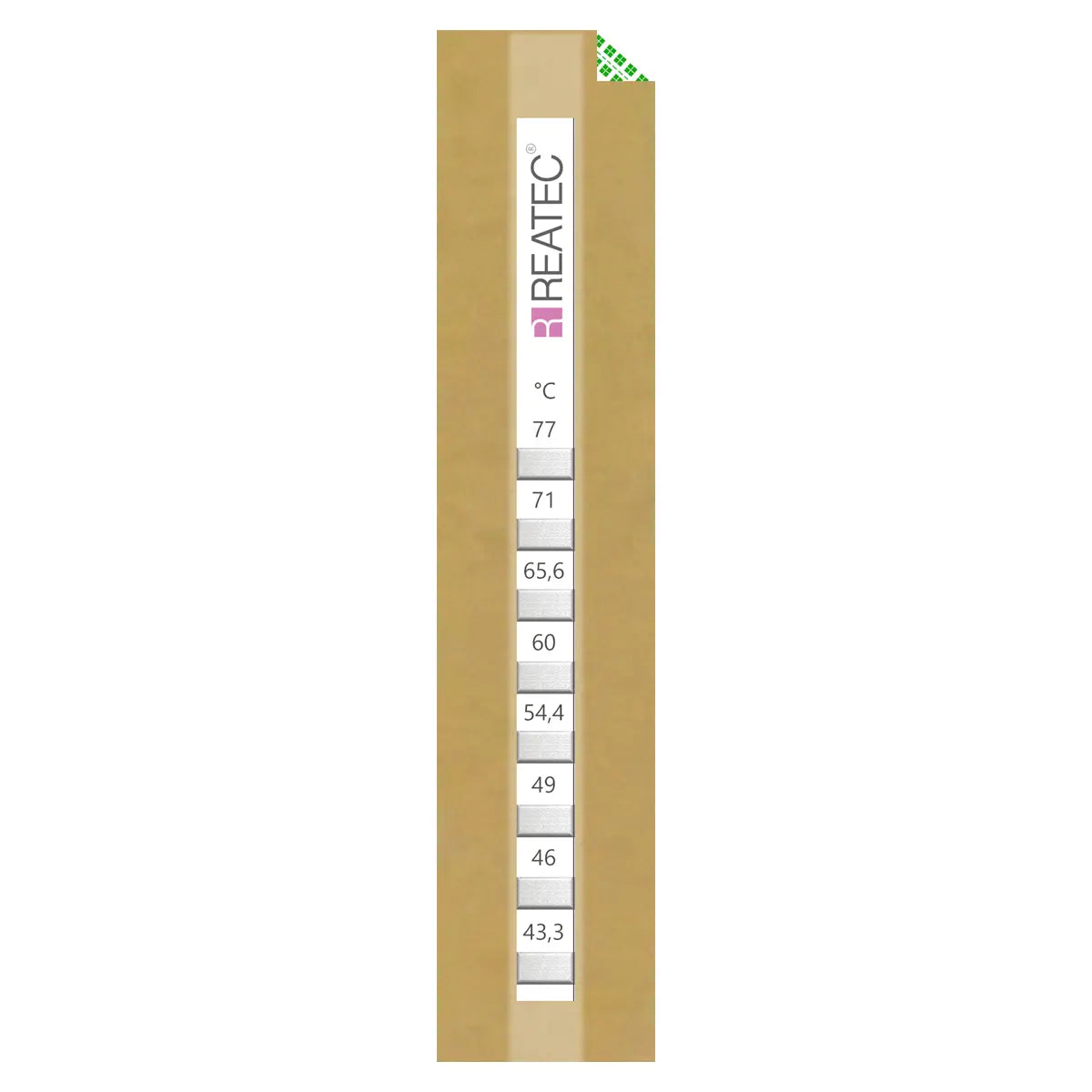

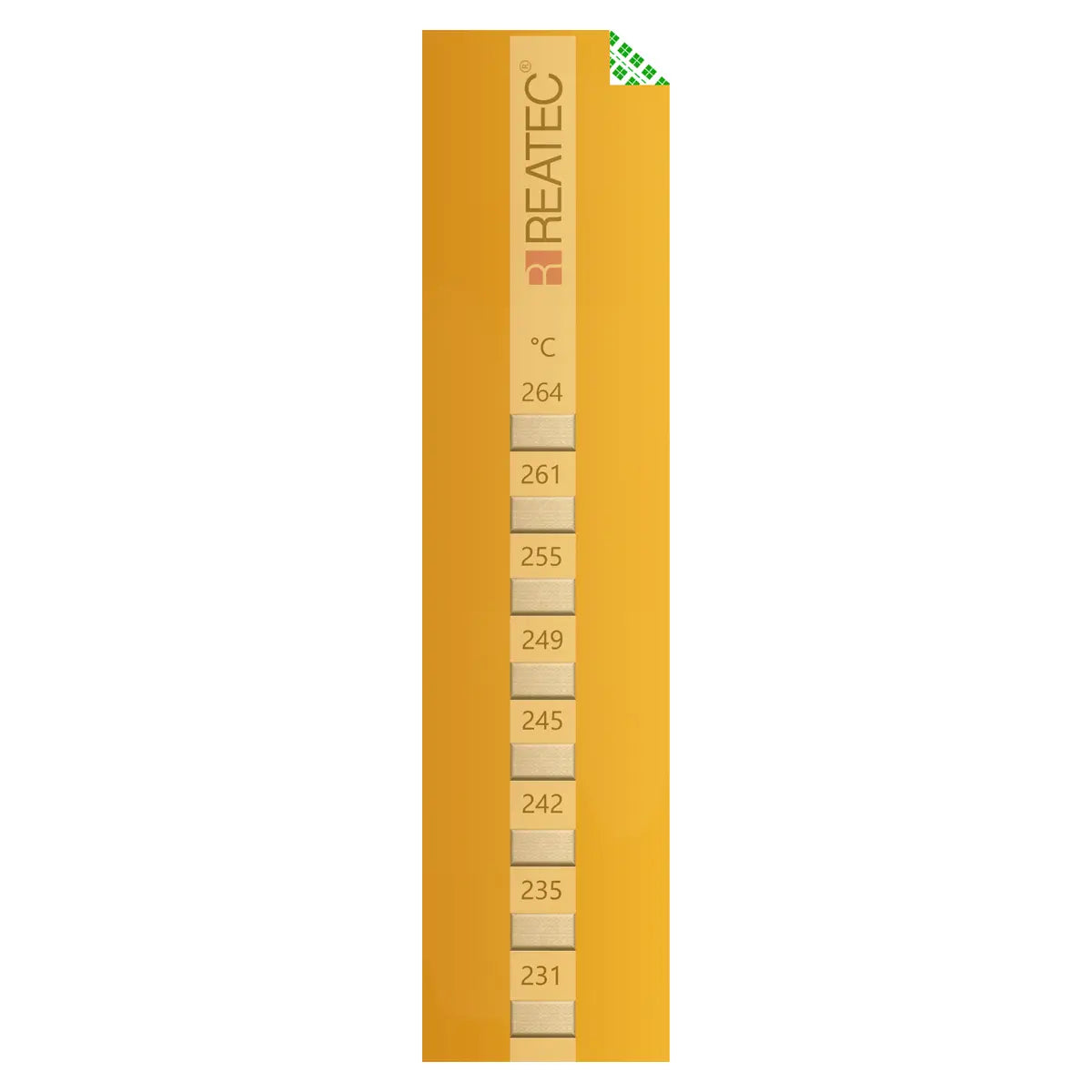

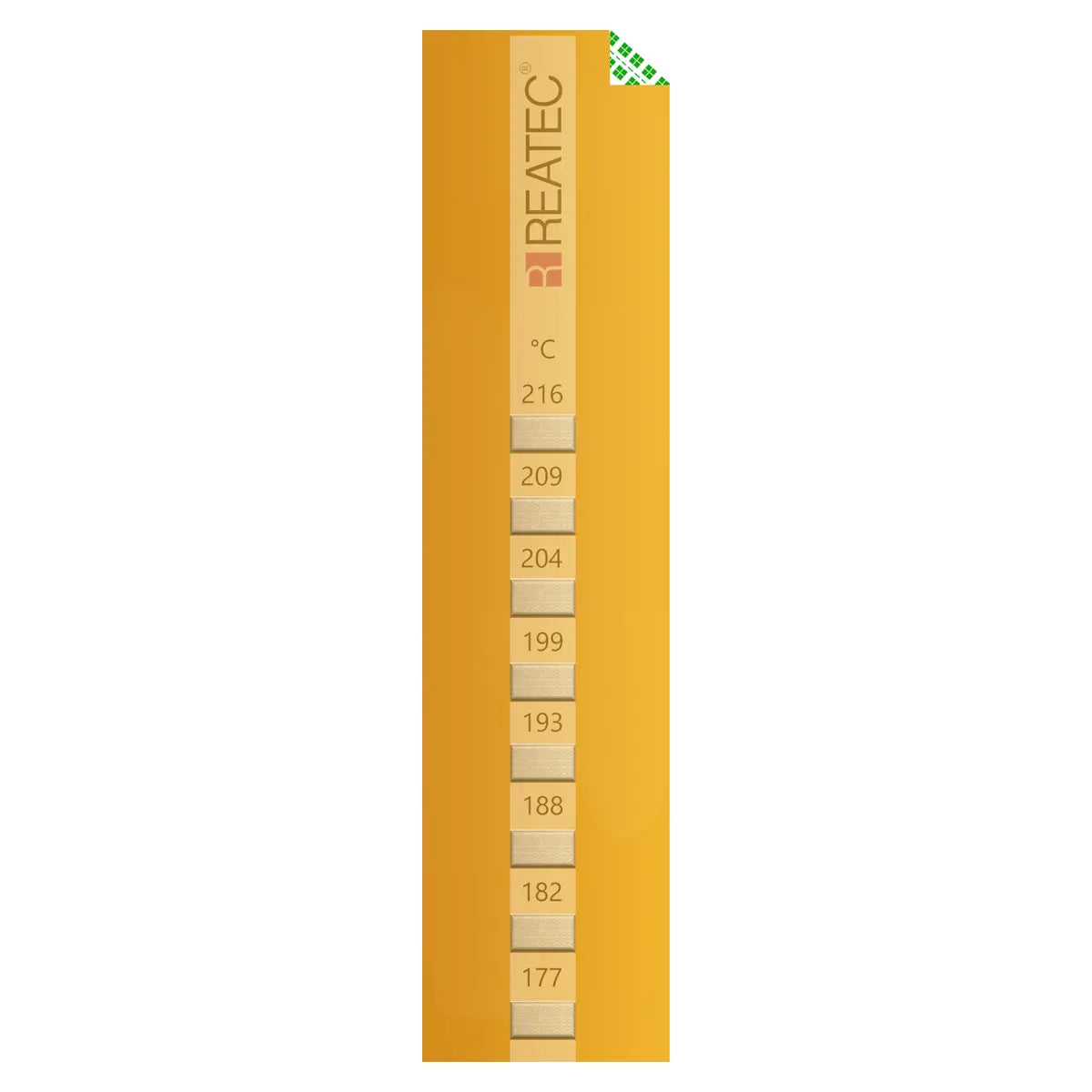

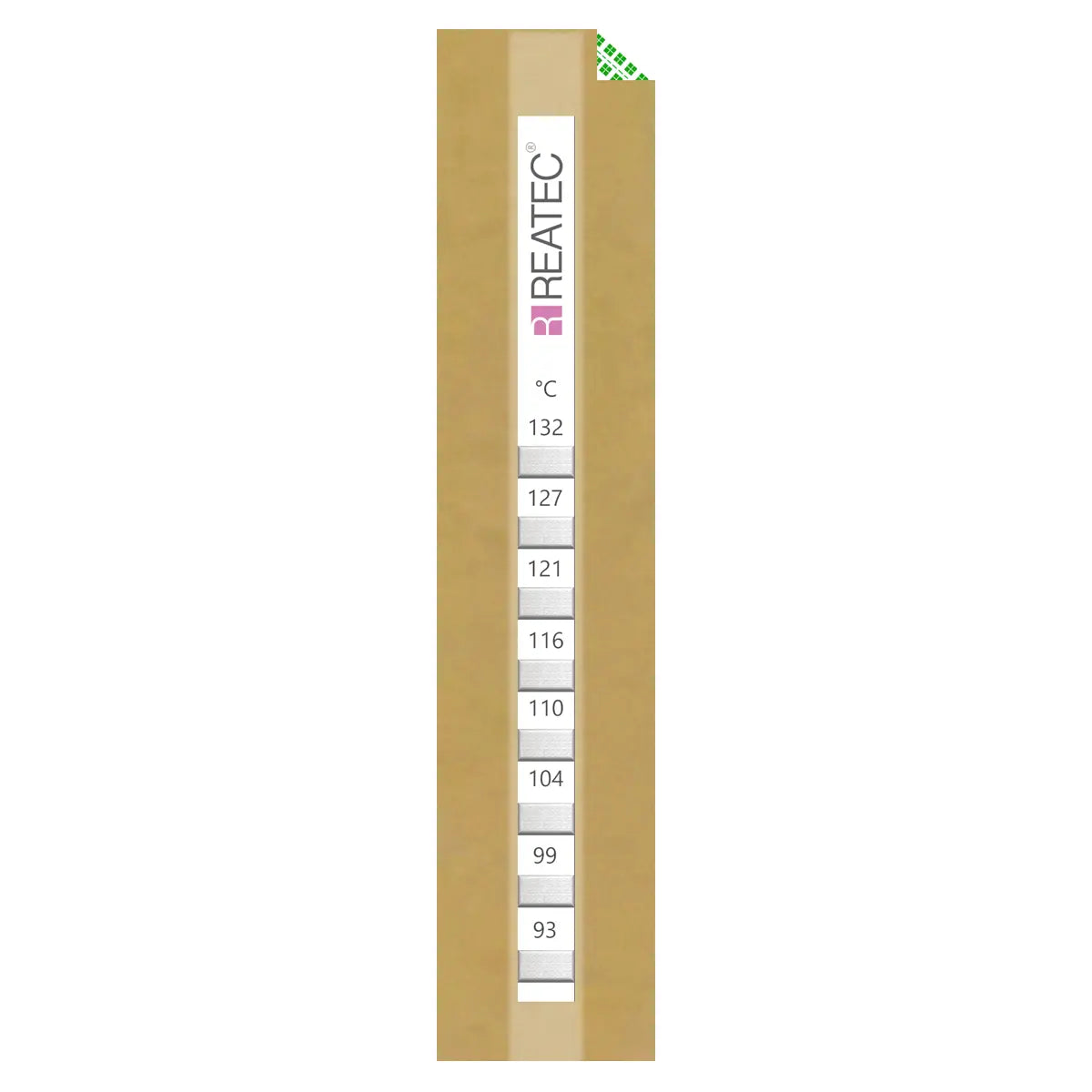

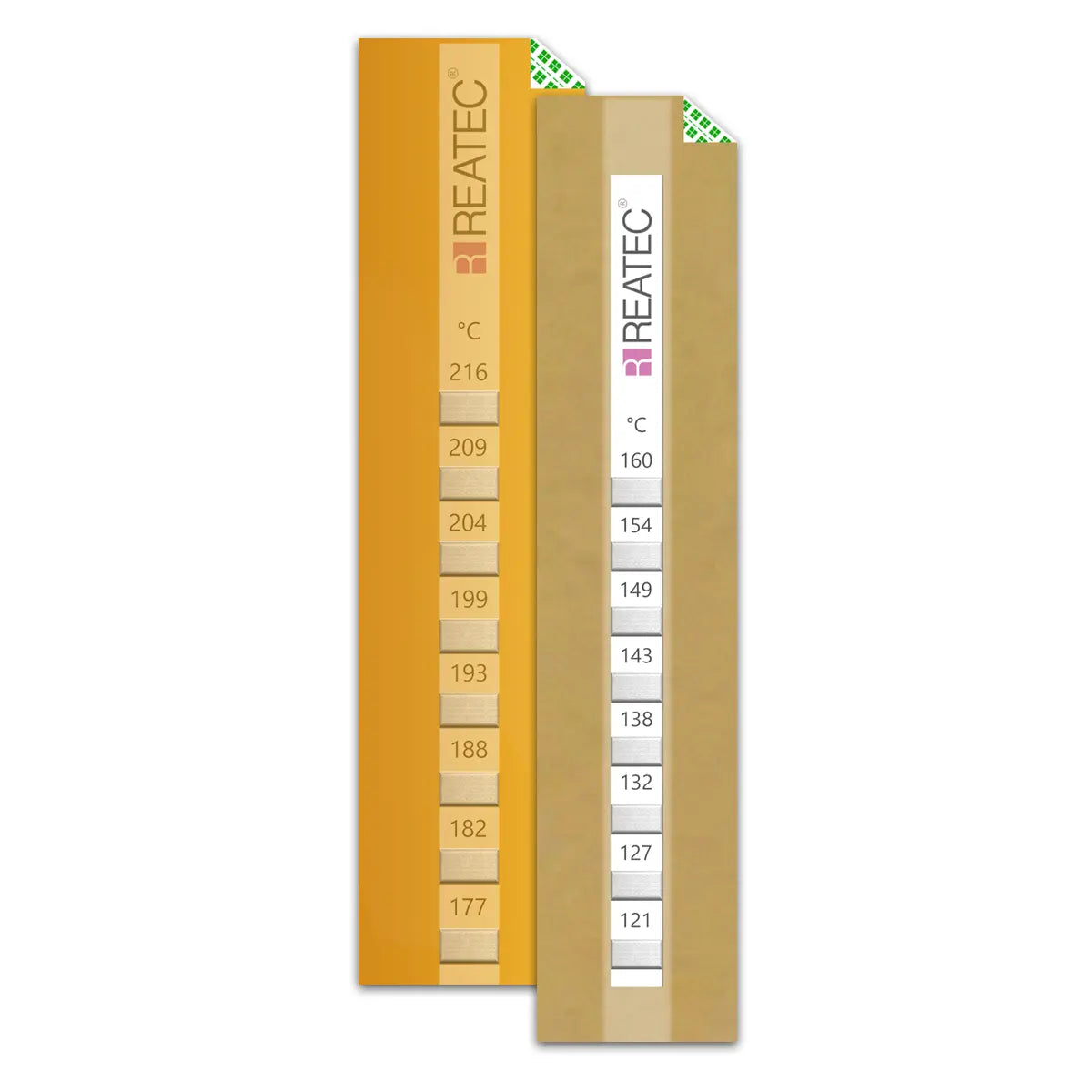

The reaStripe 8 protected is a self-adhesive irreversible temperature indicator strip based on a paper carrier which is protected by a plastic or Kapton® film, depending on the temperature. It is characterized by its cost-efficiency and its resistance to liquids, repelling water, oils and solvents. Once one of the eight temperature thresholds specified on the indicator is exceeded, the corresponding measuring point permanently changes color.

Product Data Sheet

Download Data Sheet for all product temperature ranges and SKU's.

Reatec Product Catalog

Download Catalog for all Reatec Products with exact temperature ranges and SKU's.

This product is supplied in packages, each containing 30 or 100 individual indicators.

Temperature indicators with indicator points designed to indicate temperatures between 37 and 43 °C need to be stored in a refrigerator until use in order to ensure accurate measurements.

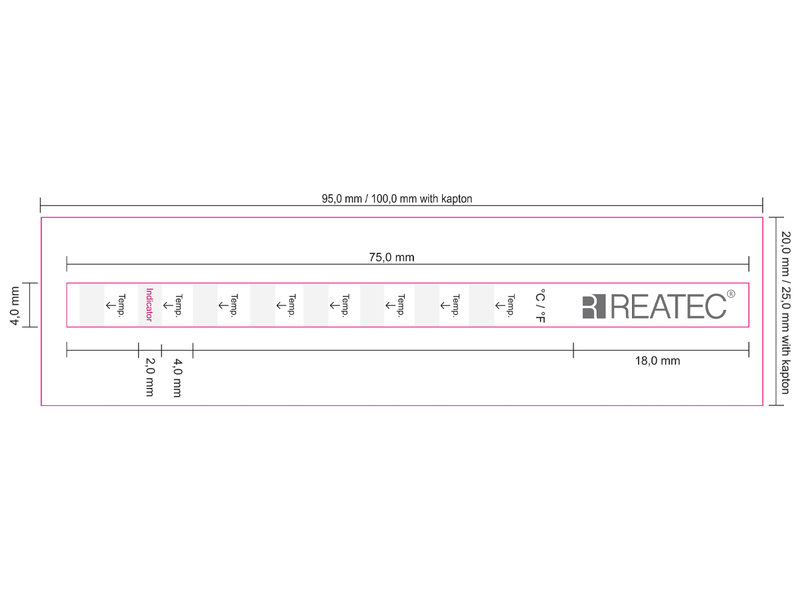

reaStripe 8 protected chemical-resistant irreversible temperature strip technical drawing

Technical specifications

Temperature thresholds 43,3 | 46 | 49 | 54,4 | 60 | 65,6 | 71 | 77
Material Paper, Plastic, Kapton®
Measuring points8
Reaction time1 - 2 sec.
Protected (oil / water / solvent repelling)Yes
Dishwasher-safeNo
Storage conditionscool, dry

Indicator strip family

Reatec self-adhesive temperature indicator strips are suitable for almost all use cases, offering an ideal mix of a very slim design and 10 temperature thresholds on the indicator – the maximum number we offer.

Reatec temperature indicator strips are our most diverse product family. The professional strips offer the highest thermal conductivity and sturdiness in this family due to their aluminum carrier. The standard indicators are cost-efficient and highly customizable due to their paper carrier. The protected strips are designed for use in environments where they could come into contact with liquids which would normally interfere with the readings, such as water, oils, and solvents.

Temperature Range
Measuring Points
Material
Oil/Water/Solvent-Repelling
Dishwasher Safe
Dimensions
43,3 - 264 °C
8
Paper, Plastic, Kapton®
Yes
No
20 x 95 / 25 x 100 mm
37,8 - 264 °C
10
Paper, Plastic, Kapton®
Yes
No
20 x 95 / 25 x 100 mm
