Irreversible temperature indicator labels and stickers, Swiss-made

Temperature Indicator Labels & Stickers

Reatec temperature indicator labels and stickers are self-adhesive indicators that can be attached to any surface to reliably indicate when a specific temperature threshold has been exceeded. They contain up to ten measuring points, are resistant to water, oils and solvents, and their irreversible indicators make sure readings remain permanently visible. Their resilience and robustness make them ideal for use in shipping and logistics.

7 Products

  • reaLabel 10 standard chemical-resistant irreversible temperature label examples with plastic and with kapton film reaLabel 10 standard chemical-resistant irreversible temperature label sheet with 10 individual labels
    Reatec 00A.LSP.10.XXX

    reaLabel 10 standard – chemical-resistant irreversible temperature labels

    Temperature Range: 40 - 260 °C | 104 - 500 °F

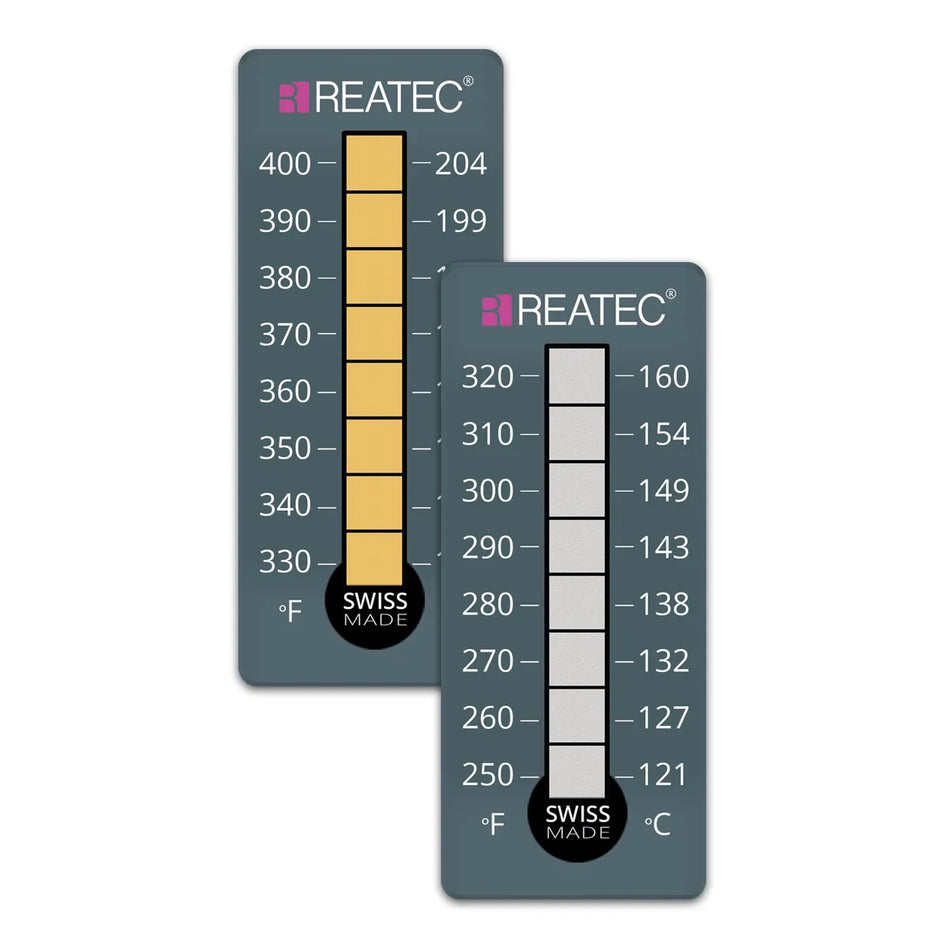

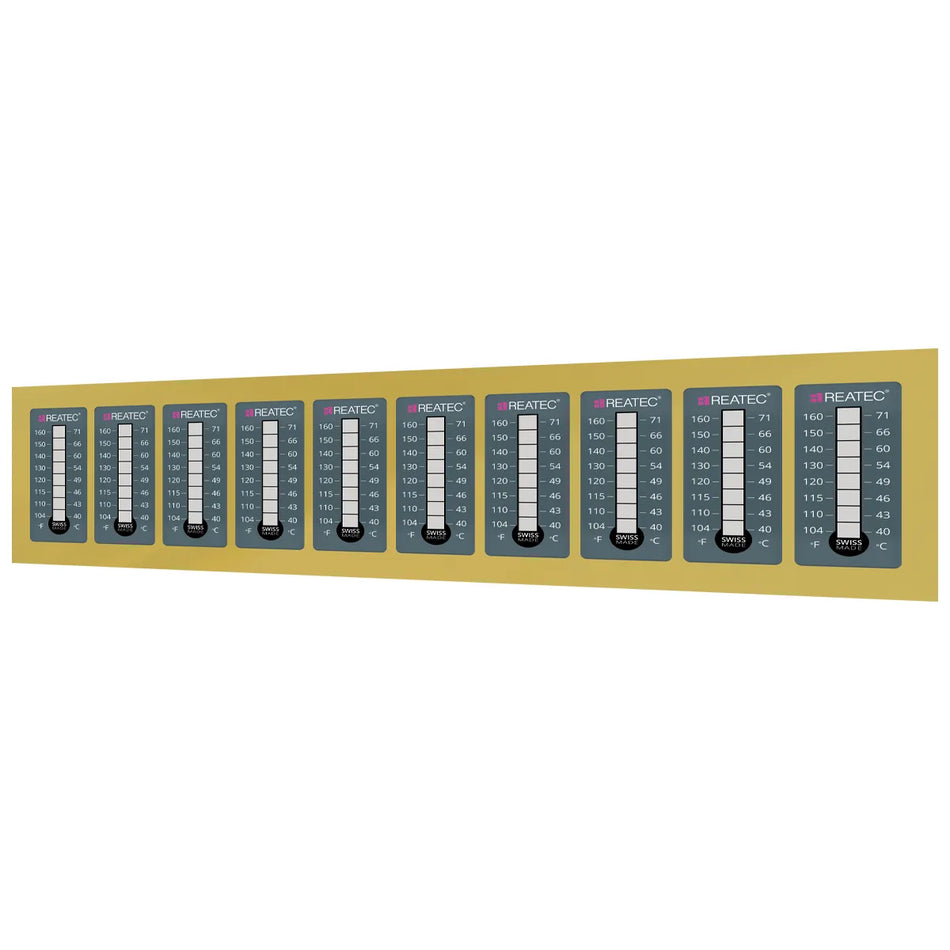

  • reaLabel 8 standard chemical-resistant irreversible temperature labels examples with plastic and with kapton film reaLabel 8 standard chemical-resistant irreversible temperature labels on sheet with 10 individual labels
    Reatec 00A.LSP.08.XXX

    reaLabel 8 standard – chemical-resistant irreversible temperature labels

    Temperature Range: 40 - 260 °C | 104 - 500 °F

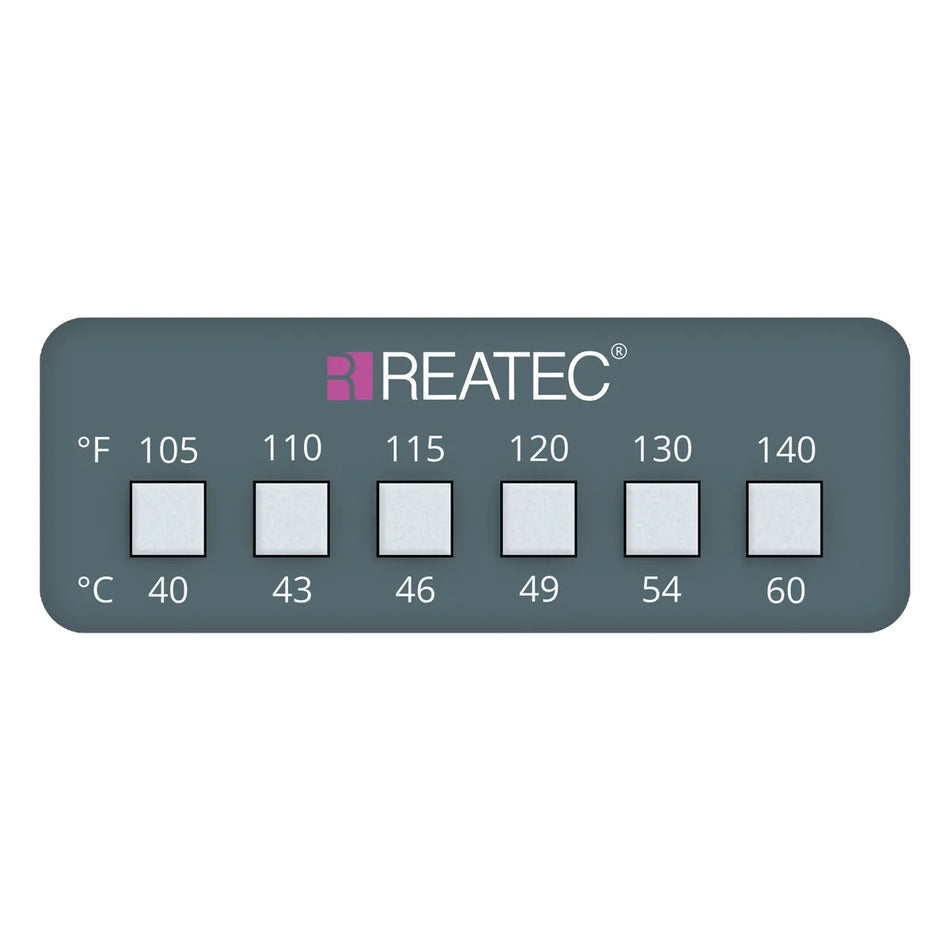

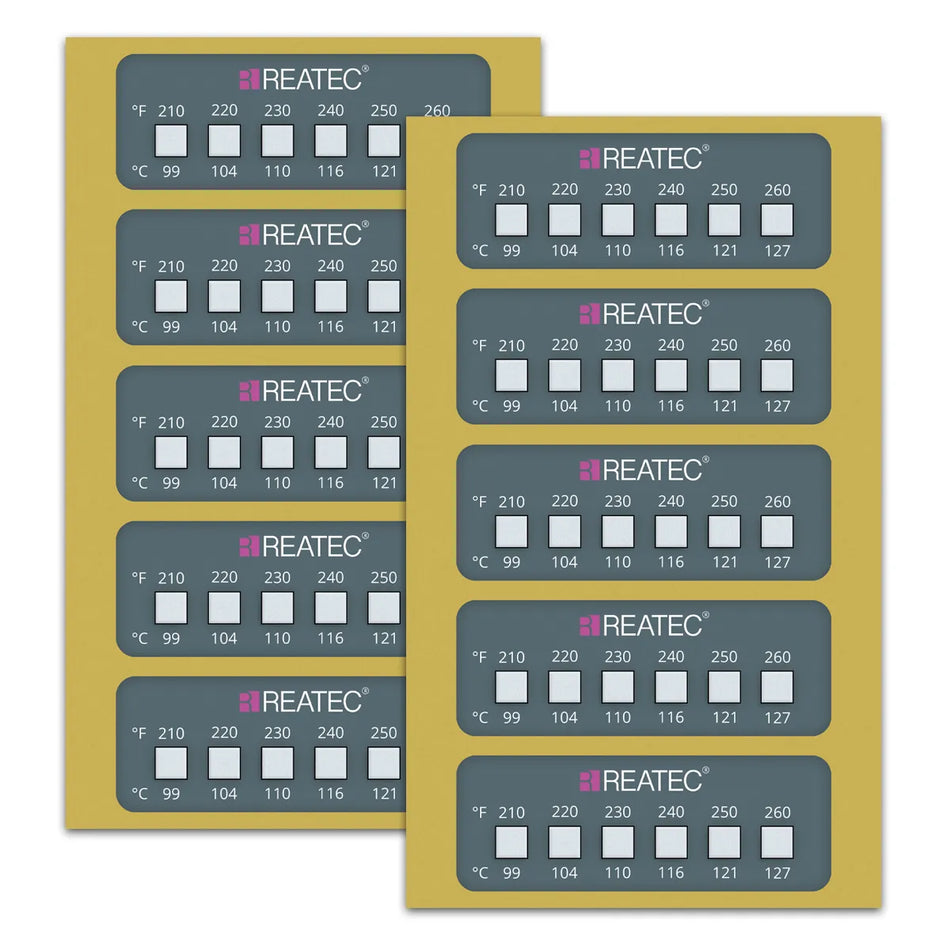

  • reaLabel 6 standard chemical-resistant irreversible temperature label 40 - 60 °C reaLabel 6 standard chemical-resistant irreversible temperature label examples sheets with 10 individual labels
    Reatec 00A.LSP.06.XXX

    reaLabel 6 standard – chemical-resistant irreversible temperature labels

    Temperature Range: 40 - 193 °C | 104 - 380 °F
  • reaPoint 5 standard compact multi-point temperature indicator 40 - 54 °C reaPoint 5 standard compact multi-point temperature indicator sheet with 10 individual indicators
    Reatec 00A.P5P.05.XXX

    reaPoint 5 standard – compact multi-point irreversible temperature indicator

    Temperature Range: 40 - 193 °C | 104 - 380 °F
  • reaPoint professional – chemical-resistant irreversible temperature indicator 38 °C reaPoint professional – chemical-resistant irreversible temperature indicator sheet with ten individual indicators
    Reatec 037.PPP.01.XXX

    reaPoint professional – chemical-resistant irreversible temperature indicator

    Temperature Range: 37,8 - 188 °C | 100 - 370 °F
  • reaPoint standard compact irreversible temperature indicator 38 °C reaPoint standard compact irreversible temperature indicator roll with individual measuring points
    Reatec 037.PSP.21.XXX

    reaPoint standard – compact temperature indicator – Reatec

    Temperature Range: 37,8 - 188 °C | 100 - 370 °F
  • reaPoint mini micro irreversible temperature indicator 38 °C reaPoint mini micro irreversible temperature indicator on roll in box
    Reatec 037.PSM.09.XXX

    reaPoint mini – compact irreversible temperature indicator

    Temperature Range: 37,8 - 188 °C | 100 - 370 °F

Function and selection of temperature sensitive labels

How do temperature sensitive labels work?

Reatec temperature sensitive labels use a light gray, wax-based compound which is applied to a black carrier paper with highly absorbent properties. The compound is engineered so that its melting point matches the temperature threshold of the specific measuring point it is used on. Once the threshold is reached, the compound melts and is fully absorbed by the paper, irreversibly revealing the black paper in the respective window on the temperature label.

When should I be choosing a single and when a multi-level temperature indicator label?

The choice between a single and multi-level temperature indicator label comes down to whether you just need to make sure that a certain temperature threshold has been crossed or if you also need to verify that it has not exceeded it by a wider margin. In case you just need to check for a threshold, a single-point temperature indicator label or sticker directly set on your target temperature is enough. Should you also need to measure the bracket around your temperature for safety or other reasons, you should pick a multi-level label with your target temperature near the middle of the indicator range. Depending on the size of the bracket you can choose between five, six, eight or ten measuring points.

What are temperature indicator labels and stickers used for?

Temperature indicator labels and stickers are used for temperature threshold verification and are suitable for almost any kind of surface, component or process. They are protected by a film and therefore especially well-suited for use in contact with and near liquids. They are most commonly used as per-shipment proof temperature indicators for shipping and logistics, to support warranty claims and to detect overheating of machines, tools, and components.

Applying and reading temperature sensitive labels

How do you apply and read a temperature indicator sticker correctly?

It is very important to directly apply the temperature indicator sticker to the exact object and spot where you want to measure the temperature, since it only measures the direct surface the indicator comes into contact with. The surface should be clean and dry to ensure optimal adhesion and the full adhesive backing should be connected to the surface to be measured. Once your process is complete, simply check which or if any of the measuring points on the sticker have changed from light gray to black. A measuring point that has darkened evenly over the majority of the surface means the corresponding temperature threshold has been reached.

How do I safely remove a used temperature indicator label in a way that preserves the reading?

Depending on the surface on which the indicator is placed, you can either use a surface-safe scraper tool or simply remove it by hand if possible. The indicators are robust and the reading should survive the removal without issue. For a safe removal, please make sure the surface has cooled down before you peel off the indicator. Any remaining glue can be removed with isopropyl alcohol.

Accuracy and permanence of temperature label readings

Are temperature indicator stickers accurate?

Reatec temperature indicator stickers are accurate to within ±1 °C below 100 °C and to 1% of the threshold value if the indicated thresholds go above 100 °C. This accuracy is achieved almost instantly with a reaction time of 1–2 seconds after the indicator reaches the threshold temperature. It is important to note that temperature indicator stickers do not measure the exact temperature of the surface they are applied to but indicate whether this temperature crossed predefined thresholds.

Are irreversible temperature labels permanent?

Whether temperature labels are permanent depends on whether you mean the readings or the adhesive. The readings are in fact permanent. They are non-reversible and the results also do not fade if the indicator is stored correctly and below the threshold of the next untriggered measuring point. The adhesive is very strong, which is necessary for the indicator to stay where you want it even if mechanical action or movement occurs. Nonetheless, it is designed to be removable and, in most cases, can be removed without issue.

Shelf life and durability of temperature indicator labels

Do temperature sensitive labels expire?

Yes, temperature sensitive labels do expire after a few years or if not stored correctly. Our standard multi-point labels like reaLabel 10 have a shelf life of up to two years, while our single-point labels and stickers have a shelf life of up to three years. If you are using them after they have exceeded their shelf life or have stored them incorrectly, the indicator may go bad and display a faded or inconsistent result, or in the worst case may fail to react at all to the crossing of the specified temperature threshold. To avoid this, store them in a cool and dry environment well below the lowest threshold temperature and use them before their shelf life is exceeded.

Are temperature stickers and labels waterproof?

Only the reaLabel family and reaPoint professional are waterproof and can be submerged. All other Reatec temperature stickers and labels are water-resistant and also repel oils and solvents. The measuring points on the indicator are covered on both sides by a plastic or Kapton® film, which ensures that the indicating compound cannot absorb any moisture. To make sure the temperature label sticks, apply it to a dry surface before it comes into contact with liquids. Once the adhesive backside has bonded, it is also waterproof.

Are temperature indicator labels heat resistant?

Yes, Reatec temperature indicator labels are in general heat resistant, but have different maximum temperatures depending on model and material. Most label variants covered with a plastic film can handle temperatures up to 190 °C without issue – with the exception of reaPoint 5 standard and reaLabel 6, which can handle up to 195 °C. The variants of reaLabel 8 and 10 protected with Kapton® can withstand temperatures up to 400 °C, well above the maximum threshold temperature on the label. Exceeding these maximum temperatures is not advised, since it can lead to melting of the protective film and heavily interfere with the accuracy and adhesive strength of the label. If you are looking for indicators that can withstand and even indicate temperatures above 400 °C, take a look at our temperature indicators for extreme heat.
