Irreversible high-temperature indicators for extreme heat monitoring

Extreme Heat Temperature Indicators

The reaHeat high temperature indicators are self-adhesive irreversible temperature indicators that cover ranges between 250 °C and 450 °C, permanently changing color once the displayed temperature threshold on the individual indicator point is reached. Far exceeding the range of most temperature indicators and based on a robust aluminum strip, they are a high-performing solution for when standard indicators fail, for example due to material constraints under high heat. Therefore, they are ideal for use in heat treatment, industrial ovens and general monitoring of abnormal heat.

1 Product

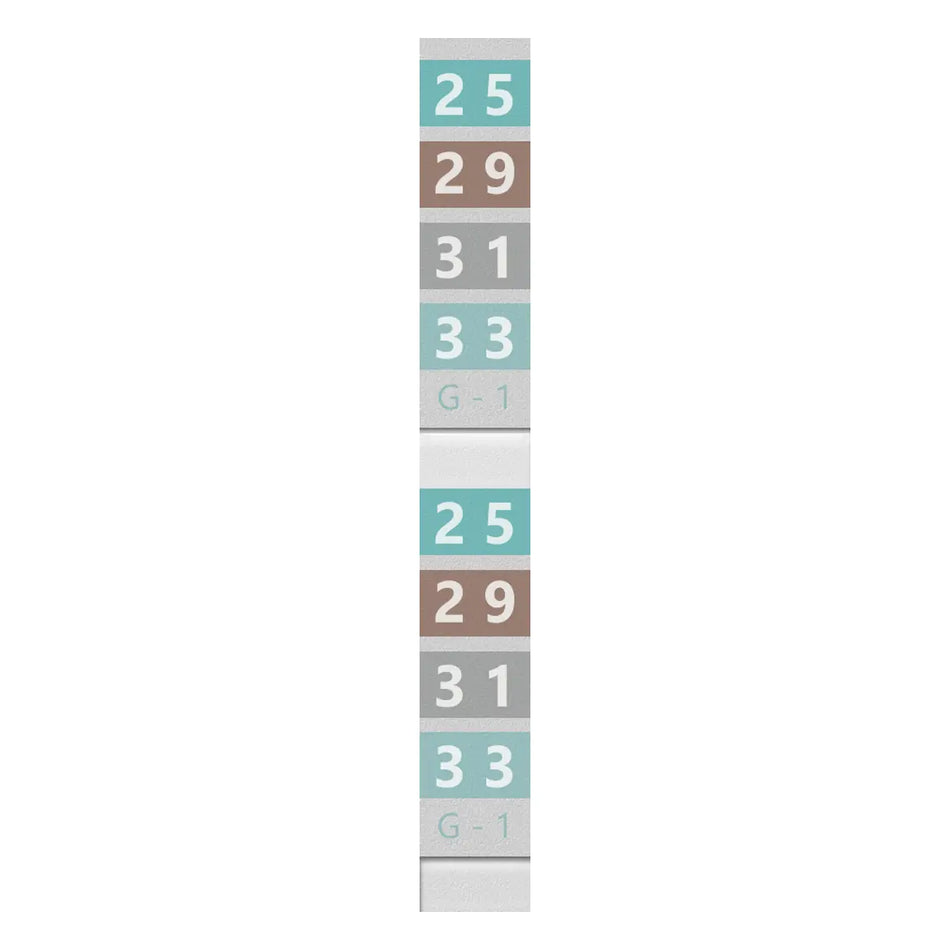

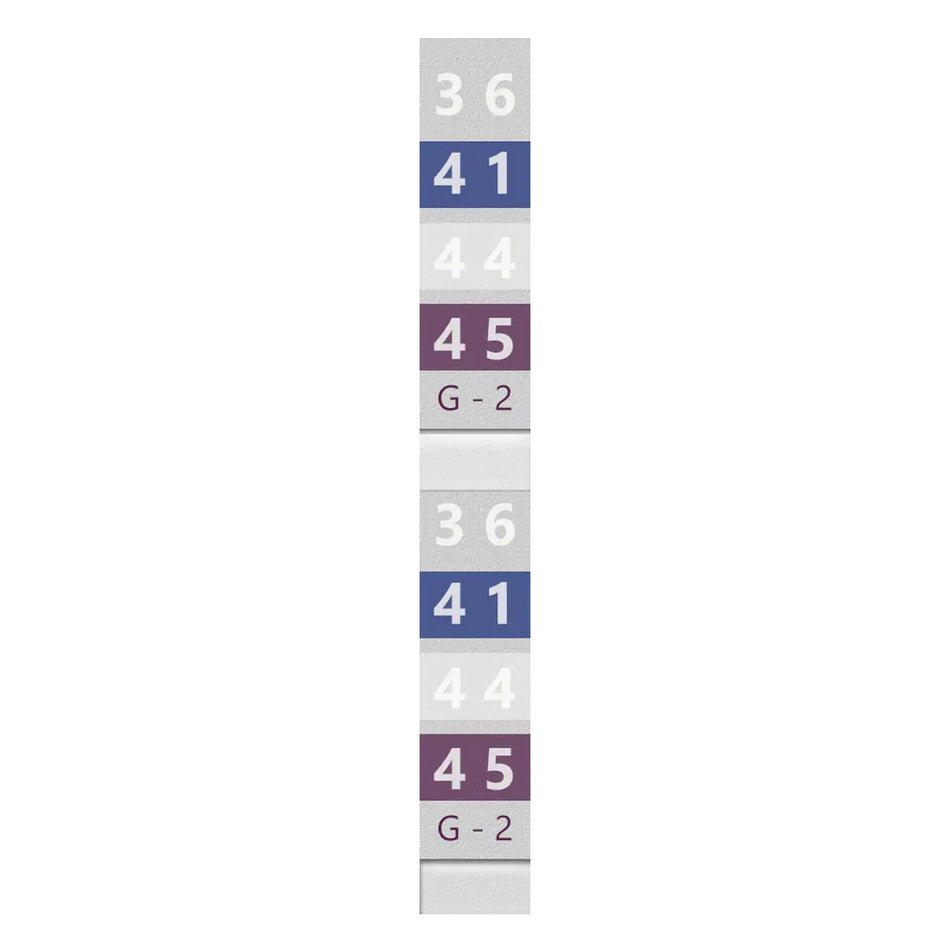

  • reaHeat professional extreme-heat irreversible temperature indicator G1 250 - 330 °C reaHeat professional extreme-heat irreversible temperature indicator G2 360 - 450 °C
    Reatec 250.H1X.04.XXX

    reaHeat 4 professional – extreme-heat irreversible temperature indicator

    Temperature Range: 250 - 450 °C | 480 - 840 °F

Function and use of extreme heat temperature indicators

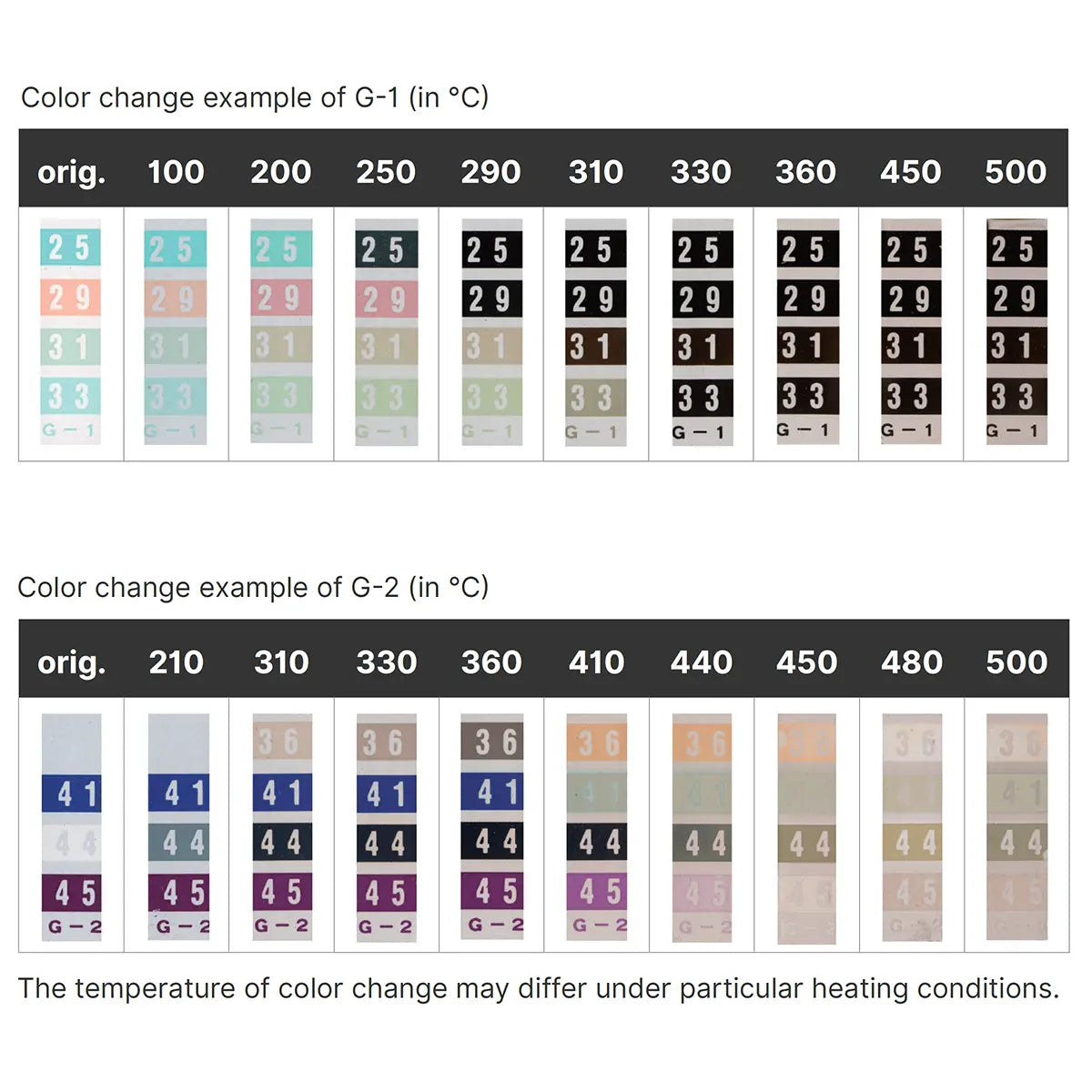

reaHeat extreme heat temperature indicator color change table

How does the reaHeat color change mechanism work?

Unlike the rest of our indicators, reaHeat 4 professional uses differently colored indicator fields depending on the corresponding temperature threshold. Since the color change indicating a crossed threshold varies from color to color, the attached table can help ensure a correct reading.

The G-1 indicators cover the range between 250 and 330 °C and their color change up to 500 °C is shown above. The G-2 indicators cover 360 to 450 °C and are shown below.

When do I need a high temperature indicator instead of a standard one?

If you want to measure temperatures above 250 °C, you need a high temperature indicator, since most commonly used temperature indicators only cover temperatures up to that point. The Reatec standard range covers only up to 264 °C, and only the extra durable, aluminum-based reaHeat 4 professional indicators still deliver accurate readings above those temperatures. Most commonly used in metalworking and industrial ovens, they persist where other indicators fail.

Do high temperature indicators expire?

Yes, high temperature indicators have an expiration date set one year after purchase. Using them beyond this point may lead to faded results or malfunctioning indicator fields triggering too early, too late or not at all. These issues can also occur if the indicator is stored incorrectly. Since reaHeat 4 has its lowest possible threshold at 250 °C, it is far less prone to accidental premature triggering during storage than most other Reatec indicators. Nonetheless, storage in a cool and dry environment is recommended.

Applications of extreme heat indicators

Can temperature indicators confirm process temperatures in industrial ovens and furnaces?

Yes, temperature indicators can confirm process temperatures in industrial ovens and furnaces. Because temperature distribution in an oven is uneven, ovens often have cold spots where the temperature is 15 °C or more below the set point. Such differences can risk material integrity and product safety if transferred to the load, for example in PTFE coating sintering. An irreversible temperature indicator placed on different parts of your load with a threshold at your set point or just below assists in detecting cold spots and verifying that the proper sintering temperature was reached. PTFE sintering requires the load to reach temperatures of between 380 and 420 °C, which is why reaHeat indicators for extreme heat are used in these processes. They can also be used in a similar way in heat treatment, such as stress relieving of brass and stainless steel or to confirm peak temperatures in depyrogenation.

Can temperature indicators record the peak temperature downhole in a borehole or well?

Yes, in contrast to complex electronic measurement setups, temperature indicators provide a simple solution to record peak bottomhole temperatures in boreholes and wells. A high temperature indicator has the benefit of being able to withstand and measure thresholds at temperatures well above 250 °C while being affordable and small, as well as not requiring a battery that can overheat. Placing such an indicator inside a retrievable downhole tool records whether the tool crossed critical temperature thresholds. reaHeat high temperature indicators can check for thresholds up to 450 °C, which makes them suitable for geothermal wells, steam injection wells or extreme HPHT wells. In case you operate an HPHT well, which normally produces temperatures between 150 and 260 °C, our standard product range (up to 264 °C) is a good choice for the job.

Can temperature indicators prove that a stove or heater was overfired?

Yes, a properly placed temperature indicator can prove that a stove or heater was overfired. The overfire limit manufacturers specify typically lies between 315 and 430 °C, which is exactly the range our reaHeat 4 professional high temperature indicators are designed to indicate. Placed directly on the stove top’s surface, the indicator provides
irreversible evidence of whether the stove top exceeded the manufacturer’s overfire limit. Checking whether a runaway burn occurred is crucial in order to determine where deterioration and damage came from and can help during warranty claims. Since the indicator can only monitor threshold crossings once applied, it is recommended to apply it before first use.
