reaLabel 10 standard – chemical-resistant irreversible temperature labels

SKU: 00A.LSP.10.XXX
Need a different temperature range?

No problem! Just click the button and send us a request.

2 years shelf life
Volume discount on request
Custom Design available

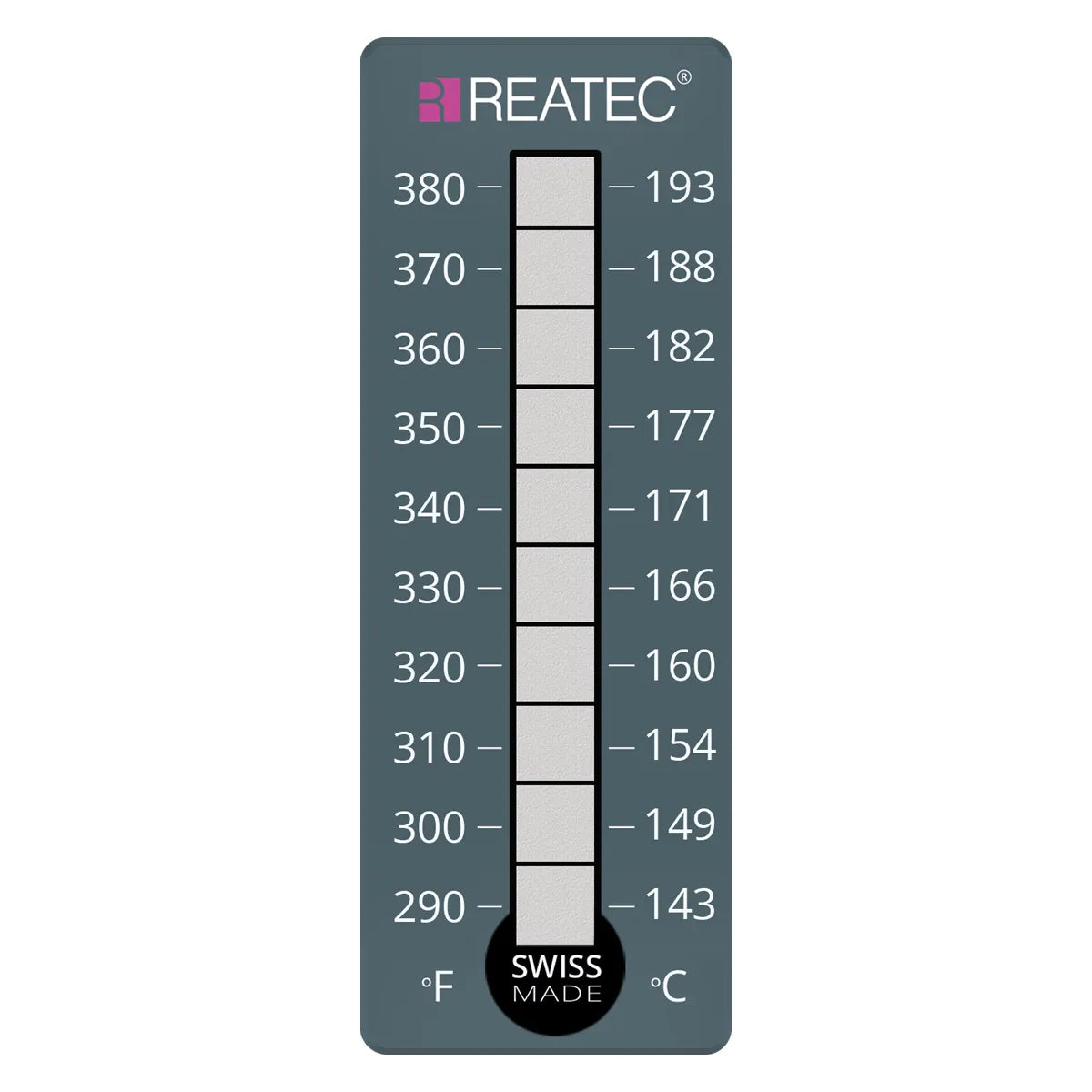

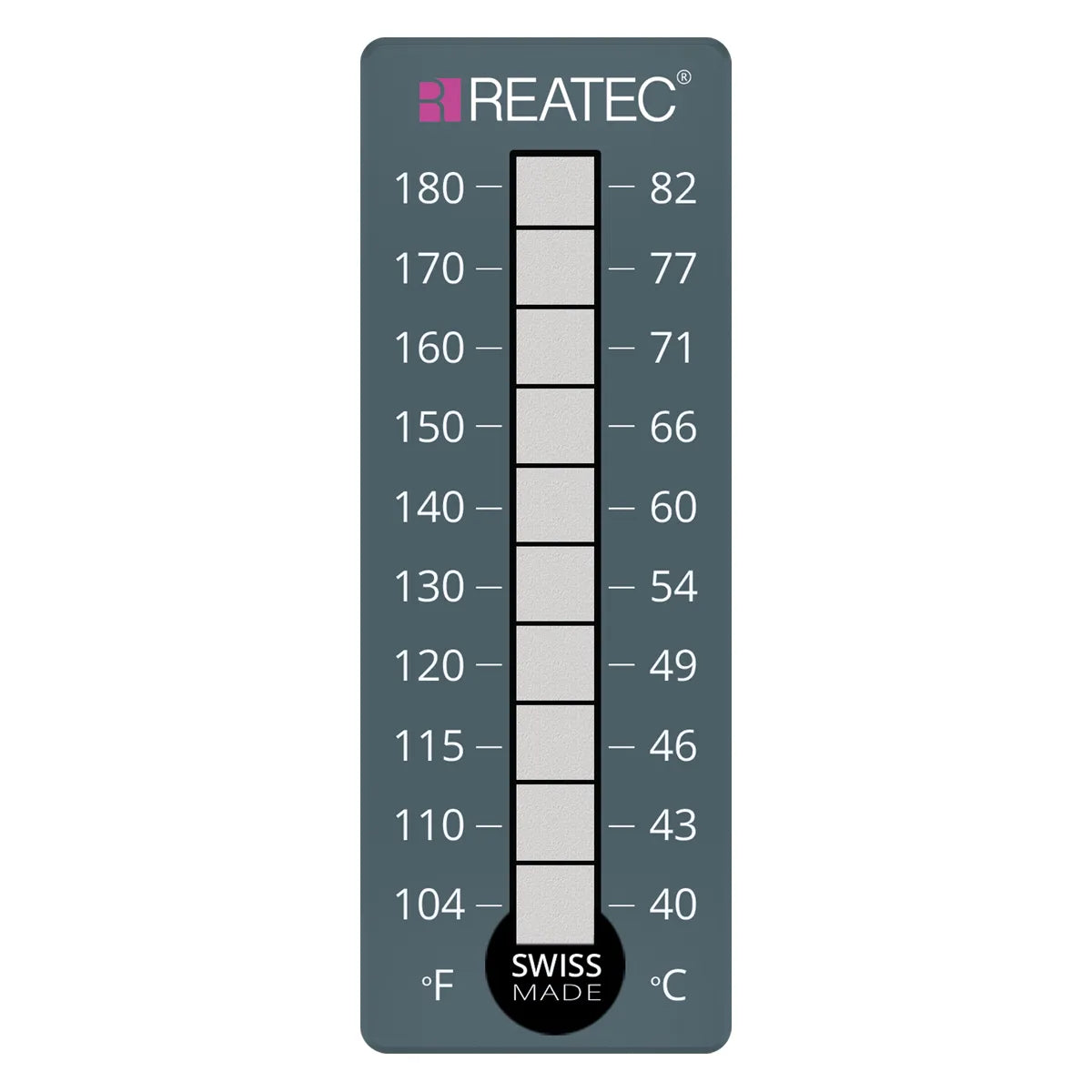

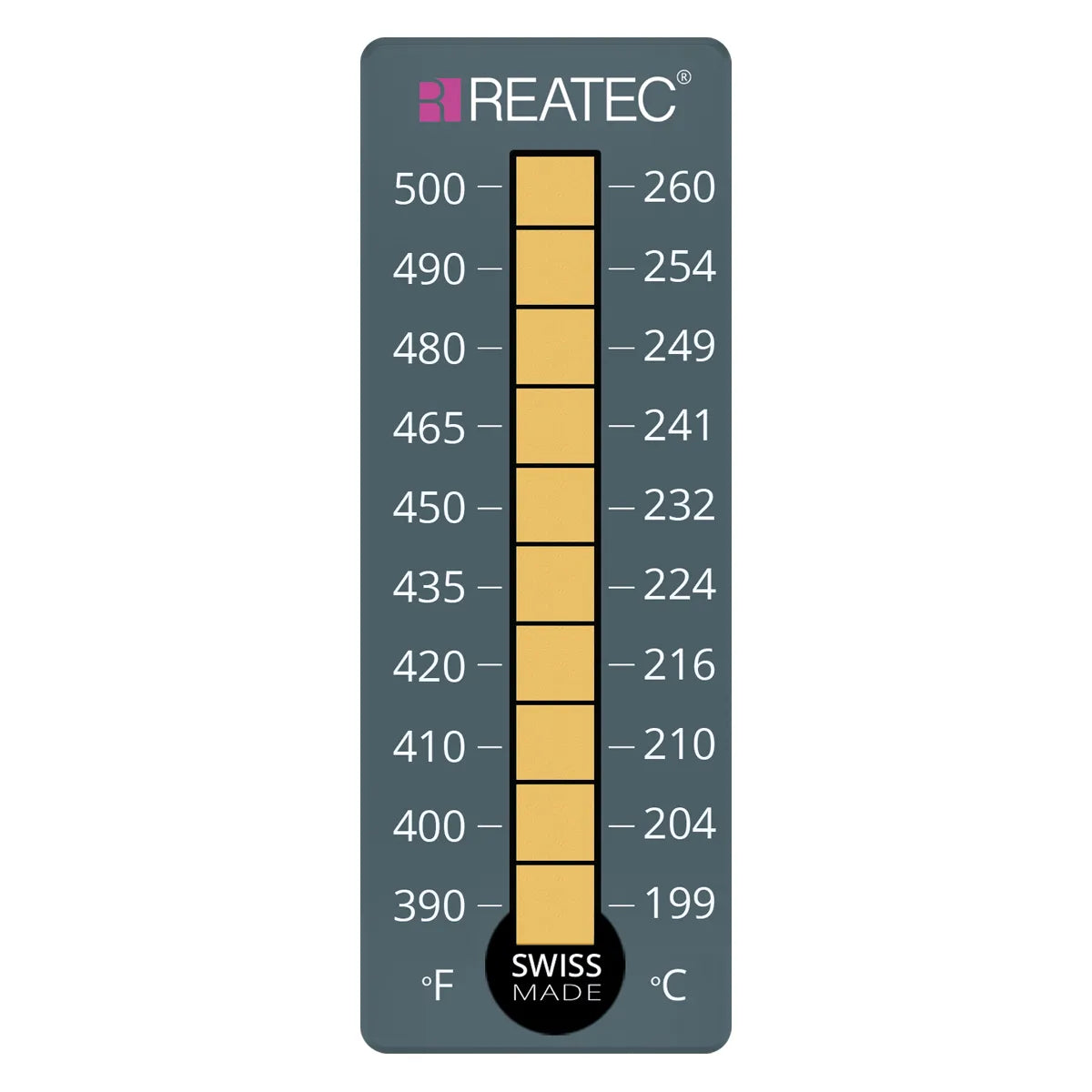

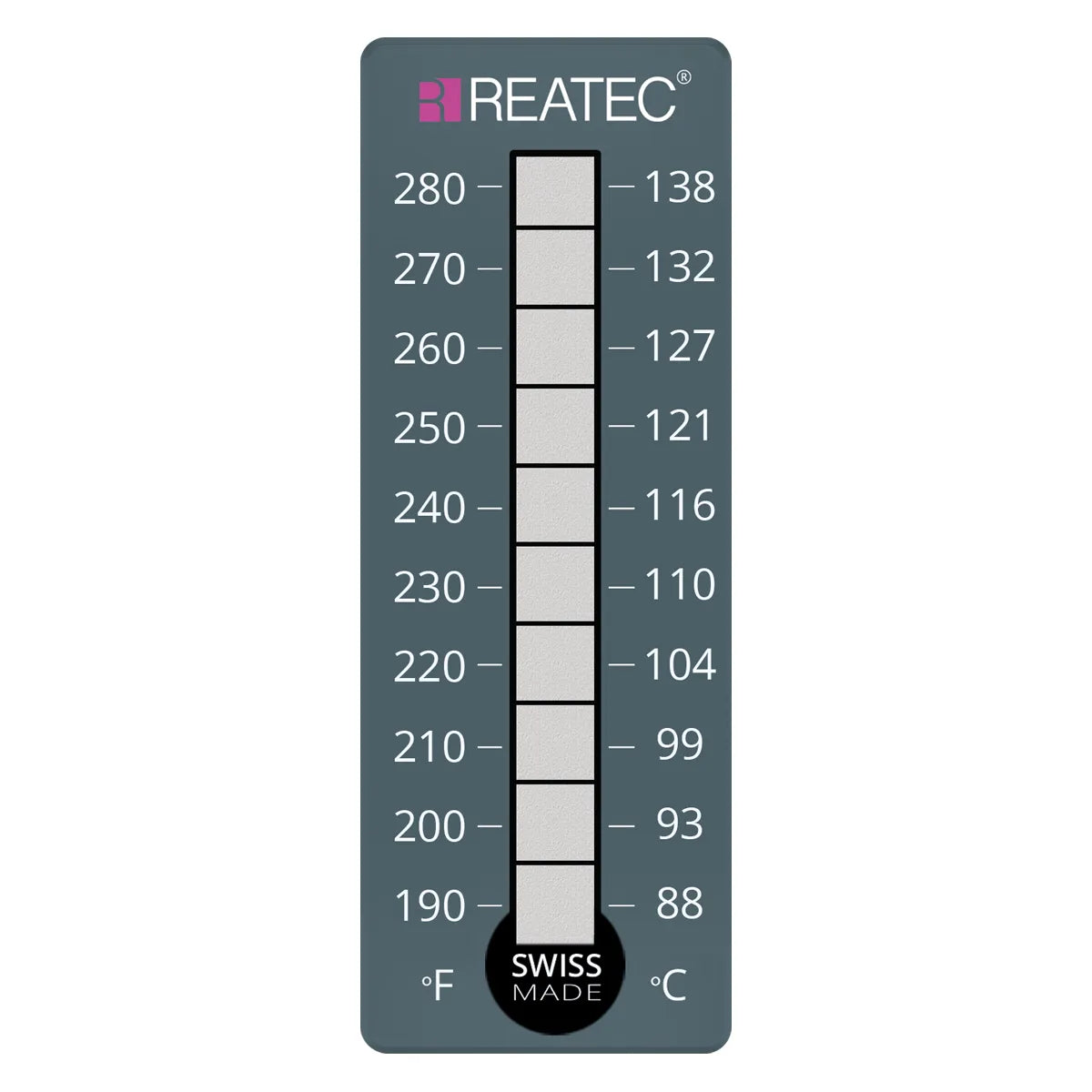

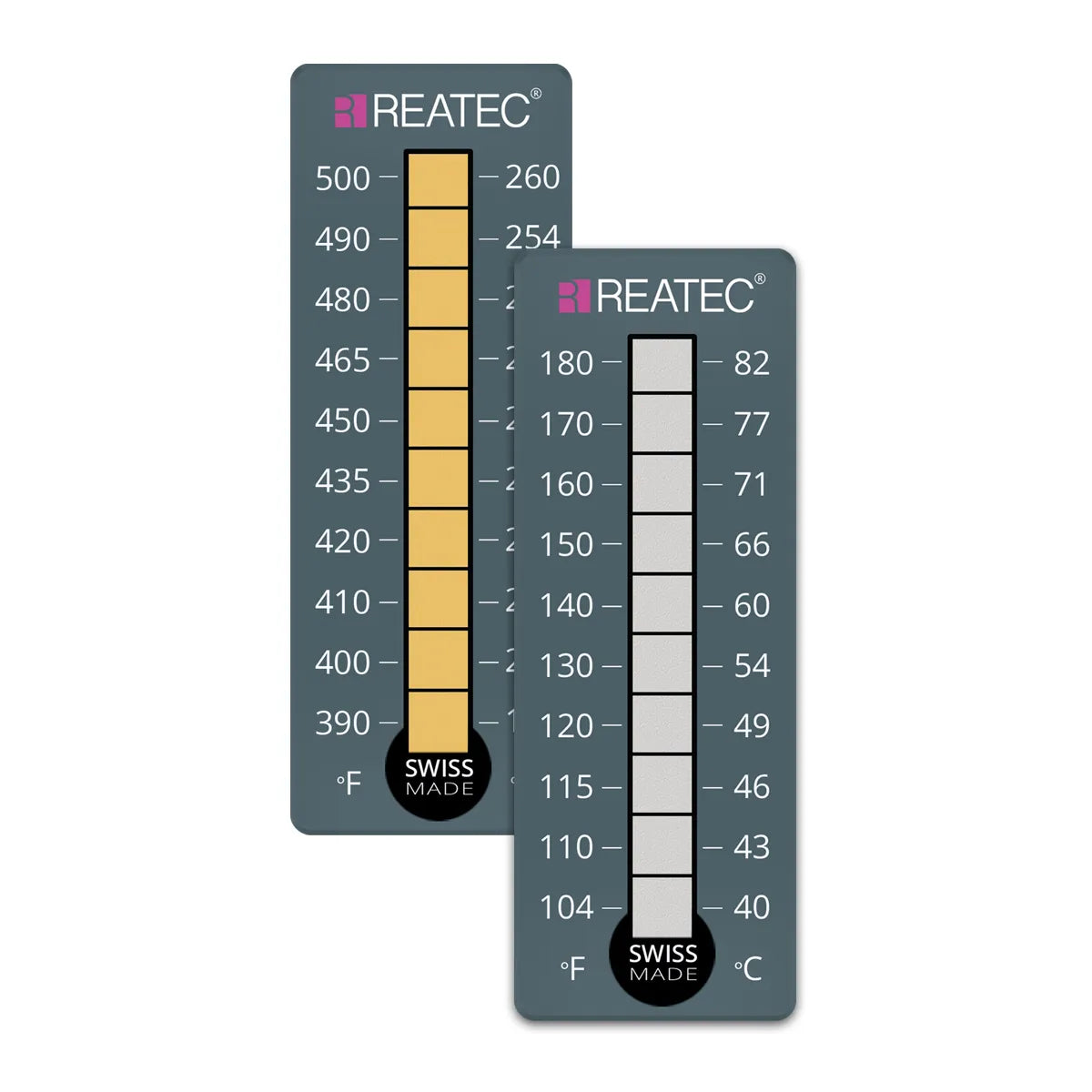

The reaLabel 10 standard is a self-adhesive irreversible temperature indicator label, offering an ideal mix of robustness, excellent thermal conductivity, flexibility and resistance to liquids thanks to its protective film. Once the temperature thresholds specified on the indicator are exceeded, the measuring points permanently change color. It holds ten individual measuring points with both a Celsius and a Fahrenheit scale.

Product Data Sheet

Download Data Sheet for all product temperature ranges and SKU's.

Reatec Product Catalog

Download Catalog for all Reatec Products with exact temperature ranges and SKU's.

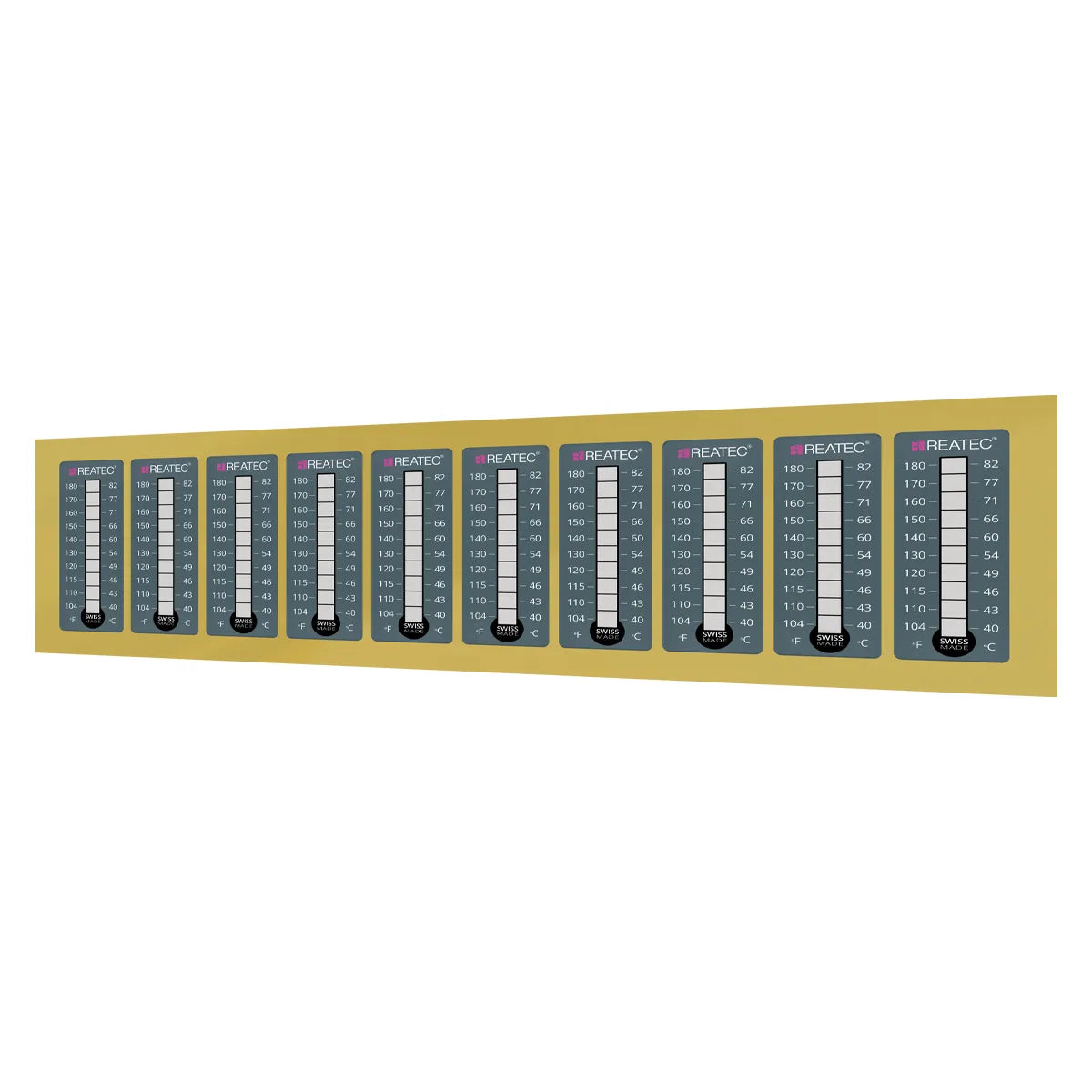

This product is supplied on a carrier film containing 10 individual indicators.

The minimum order quantity is 30 indicators, equivalent to 3 carrier films.

Temperature indicators with indicator points designed to indicate temperatures between 37 and 43 °C need to be stored in a refrigerator until use in order to ensure accurate measurements.

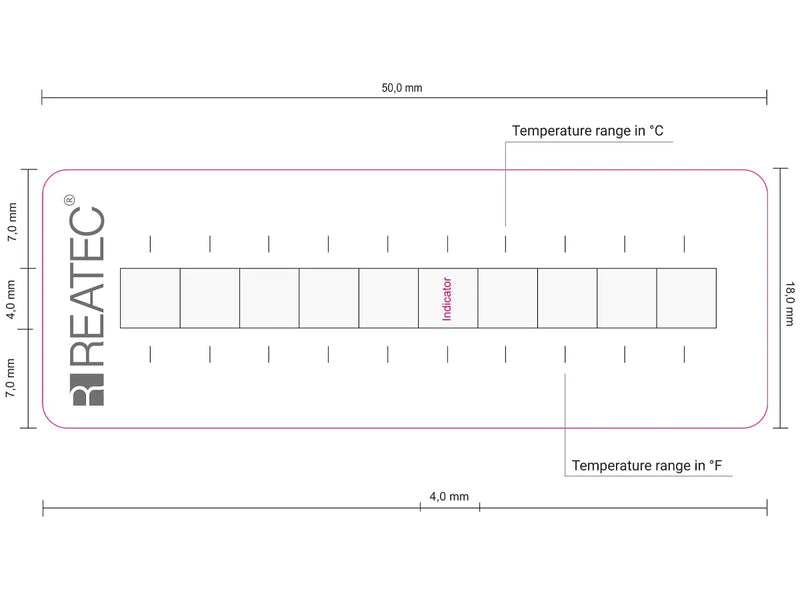

reaLabel 10 standard chemical-resistant irreversible temperature label technical drawing

Technical specifications

Temperature thresholds 40 | 43 | 46 | 49 | 54 | 60 | 66 | 71 | 77 | 82
Material Paper, Plastic, Kapton®
Measuring points10
Reaction time1 - 2 sec.
Protected (oil / water / solvent repelling)Yes
Dishwasher-safeYes
Storage conditionscool, dry

Indicator label family

Reatec irreversible temperature indicator labels & stickers are our most advanced product family, all are highly durable and are all outfitted with a plastic protection film, making them suitable for use in environments exposed to oils, solvents and water.

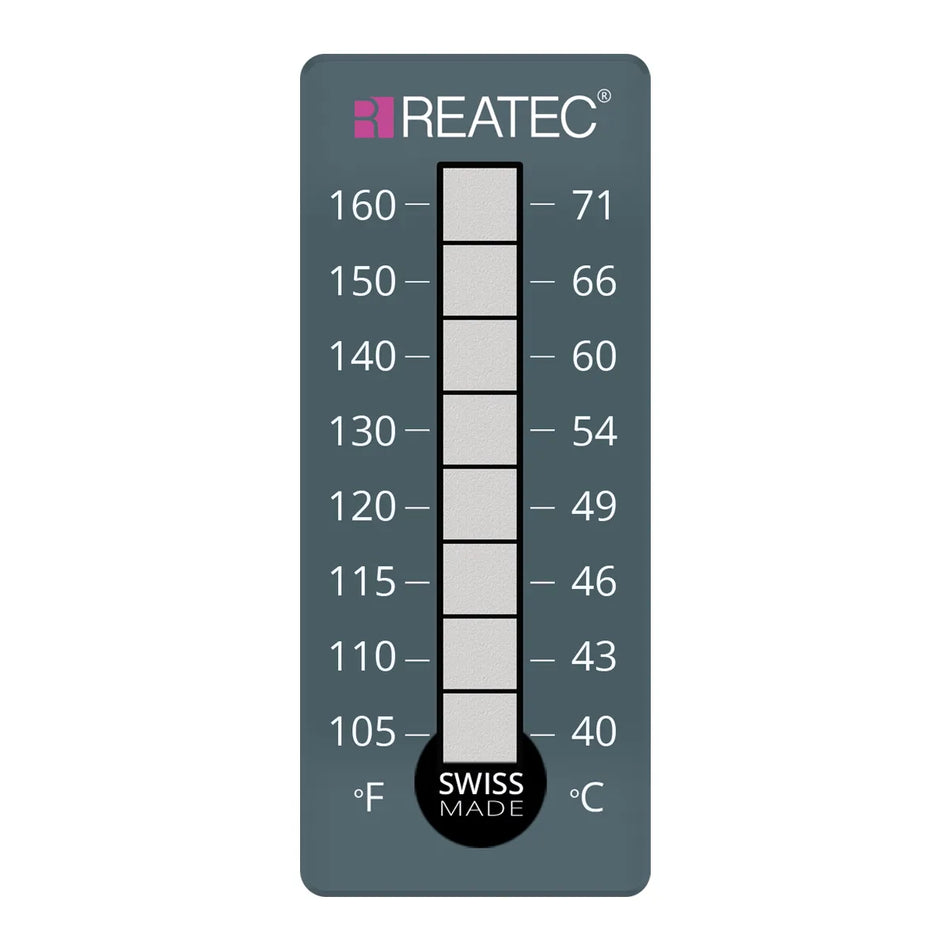

They differ almost exclusively by the number of measuring points, i.e. temperature thresholds that can be measured, offering between 5 and 10. If you want to place the label horizontally but also ensure optimal readability, the reaLabel 6 is ideal because of its tilted design. For small spaces our reaPoint 5 is the best choice, but be aware that it is not suitable for use in washer-disinfectors or dishwashers.

Temperature Range
Measuring Points
Material
Oil/Water/Solvent-Repelling
Dishwasher Safe
Dimensions
40 - 260 °C
10
Paper, Plastic, Kapton®
Yes
Yes
18 x 50 mm
40 - 260 °C
8
Paper, Plastic, Kapton®
Yes
Yes
18 x 50 mm
40 - 260 °C
6
Paper, Plastic, Kapton®
Yes
Yes
50 x 18 mm
