reaTextile standard – fabric-specific temperature indicator strips

SKU: TEX.TSX.10.XXX
Need a different temperature range?

No problem! Just click the button and send us a request.

3 years shelf life
Volume discount on request
Custom Design available

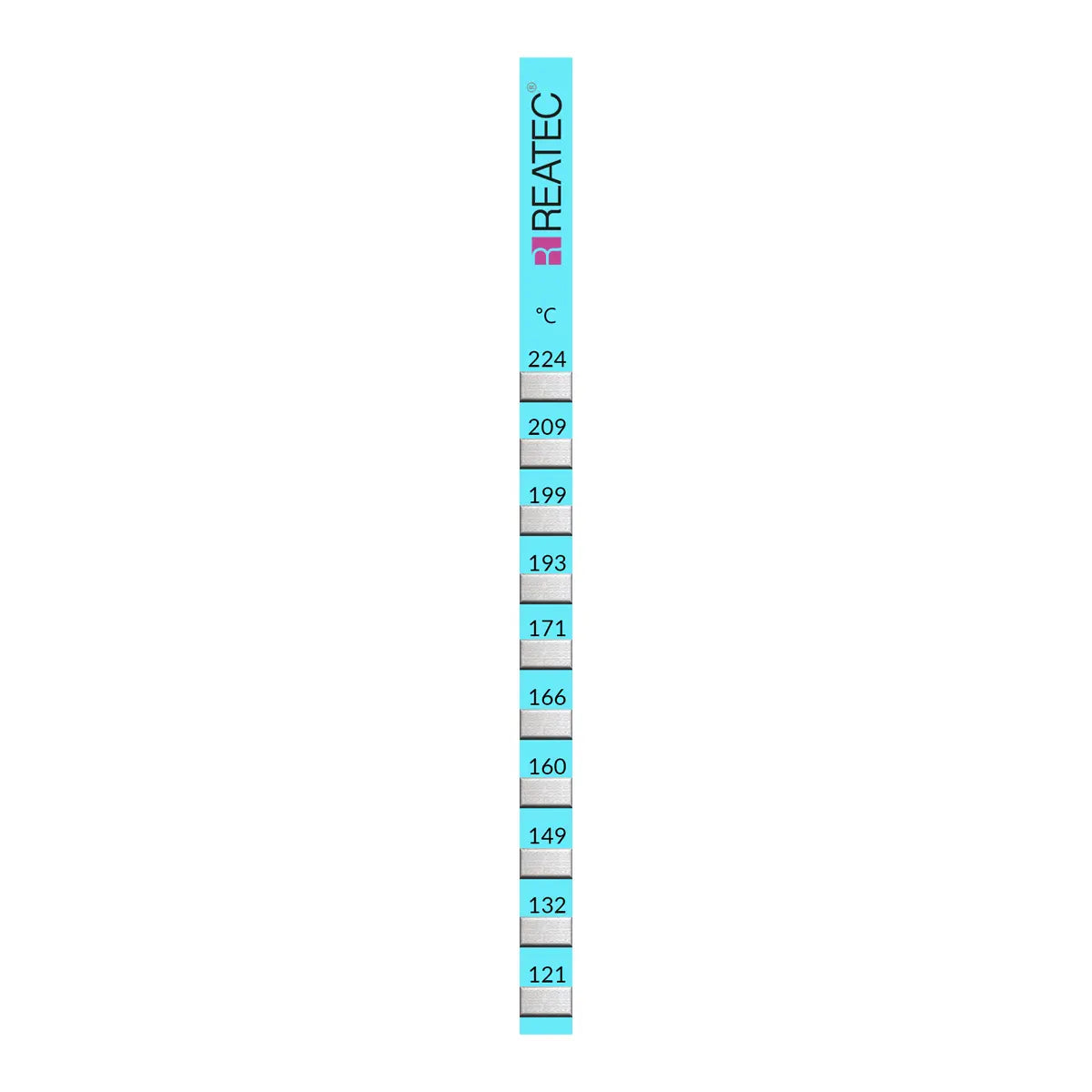

The reaTextile standard is an irreversible temperature indicator strip specially adapted for use in textile manufacturing. It is based on a paper carrier and available with or without adhesive backing in order to allow for maximum flexibility. Once the temperature thresholds specified on the indicator are exceeded, the measuring points permanently change color. It holds ten individual points on a very slim frame, allowing for space-efficient multi-point temperature monitoring.

Product Data Sheet

Download Data Sheet for all product temperature ranges and SKU's.

Reatec Product Catalog

Download Catalog for all Reatec Products with exact temperature ranges and SKU's.

This product is supplied in packages, each containing 100 individual indicators.

reaStripe 10 technical drawing

Technical specifications

Temperature thresholds 121 | 132 | 149 | 160 | 166 | 171 | 193 | 199 | 209 | 224
Material Paper
Measuring points10
Reaction time1 - 2 sec.
Protected (oil / water / solvent repelling)No
Dishwasher-safeNo
Storage conditionscool, dry

Textile indicator family

Reatec textile indicators are temperature indicator strips specially adapted for use in textile manufacturing. They offer the same combination of a slim design and our maximum number of measuring points, that being 10.

The biggest difference between the models is the self-adhesive backing. While our standard textile indicators are available with and without it, our liquid-repellent protected variant is only available without. If you want to place the indicator directly on the fabric or use sensitive fabrics like silk, a non-adhesive indicator is recommended.

Temperature Range
Measuring Points
Material
Oil/Water/Solvent-Repelling
Dishwasher Safe
Dimensions
