reaSquare standard – nano irreversible temperature indicator

SKU: 037.ECK.01.XXX
Need a different indicator temperature?

No problem! Just click the button and send us a request.

3 years shelf life
Volume discount on request
Custom Design available

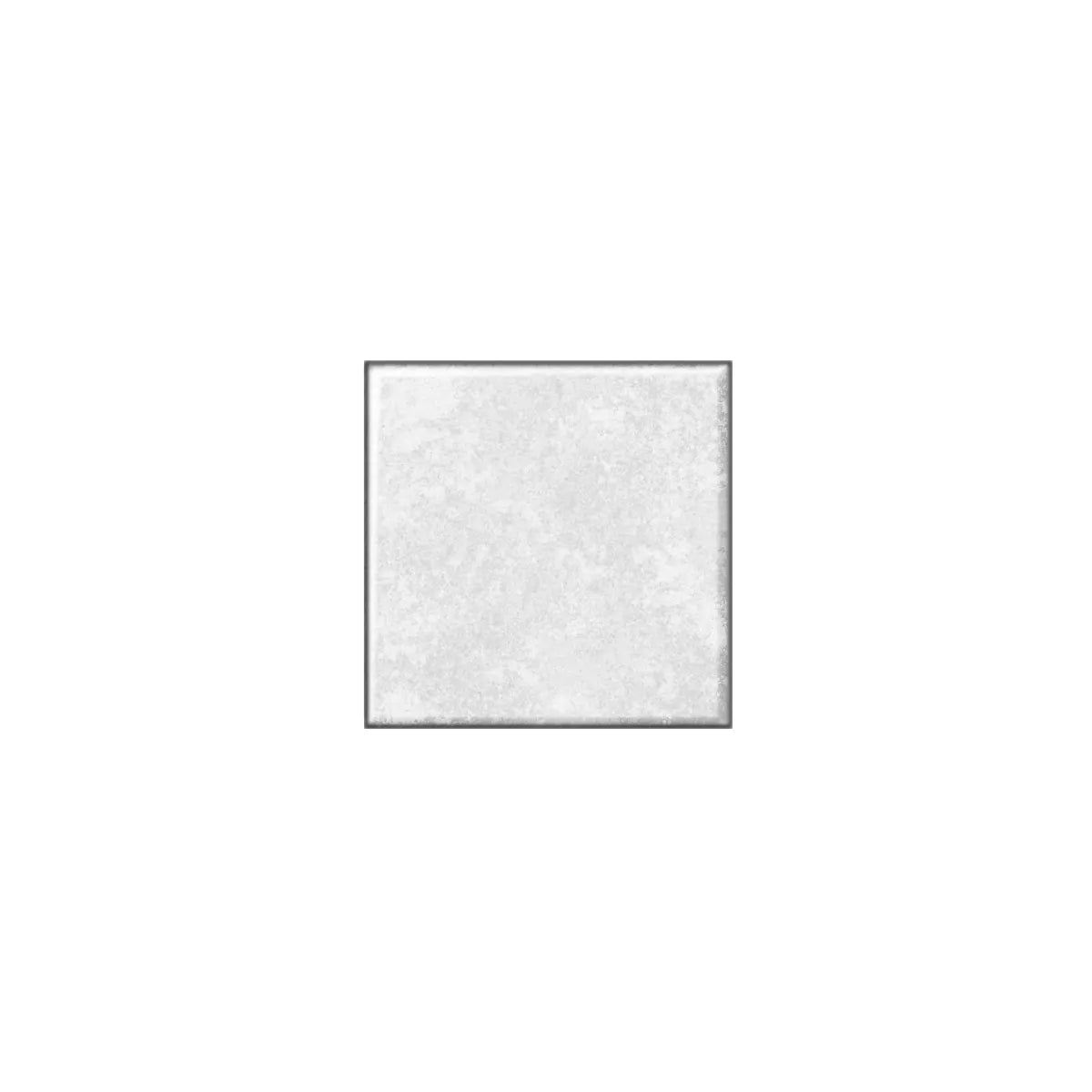

The reaSquare standard is a self-adhesive irreversible temperature measuring point, based on a paper carrier and characterized by its cost-efficiency, flexibility and its extremely small size for use on the smallest components. The scale has been removed to achieve minimal size, leaving just the measuring point itself. Once the temperature threshold on the indicator is exceeded, the indicator permanently changes color.

Product Data Sheet

Download Data Sheet for all product temperature ranges and SKU's.

Reatec Product Catalog

Download Catalog for all Reatec Products with exact temperature ranges and SKU's.

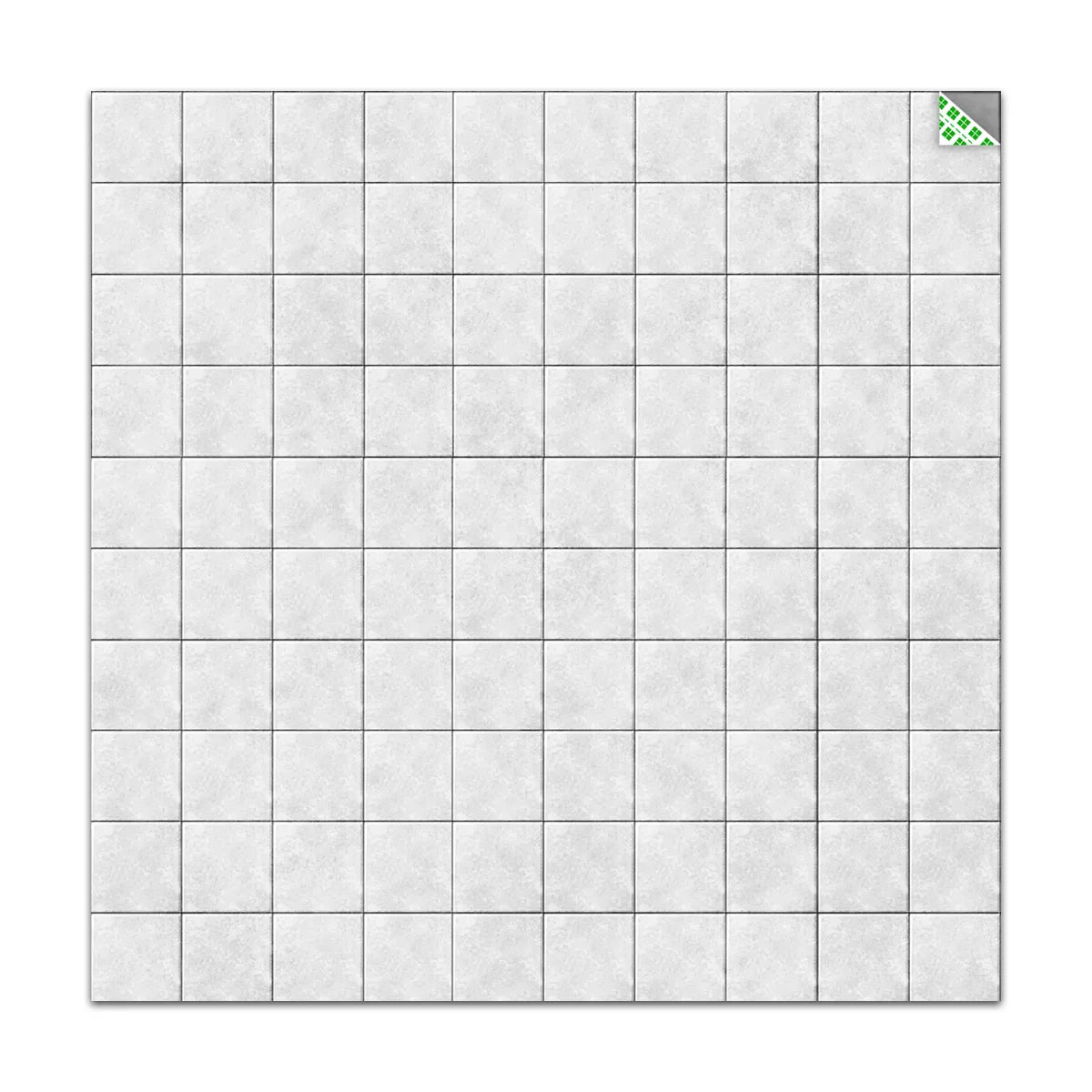

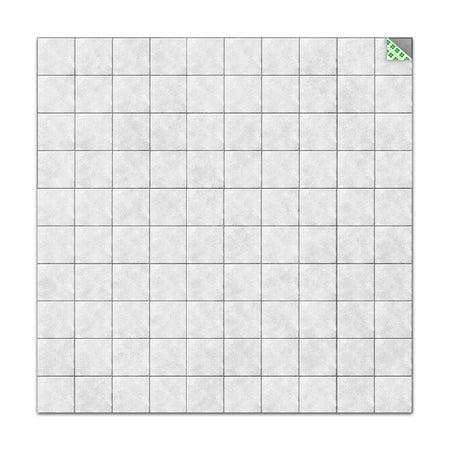

This product is supplied in sheets containing 100 individual indicators.

The minimum order quantity is 1500 indicators, equivalent to 15 sheets.

Temperature indicators with indicator points designed to indicate temperatures between 37 and 43 °C need to be stored in a refrigerator until use in order to ensure accurate measurements.

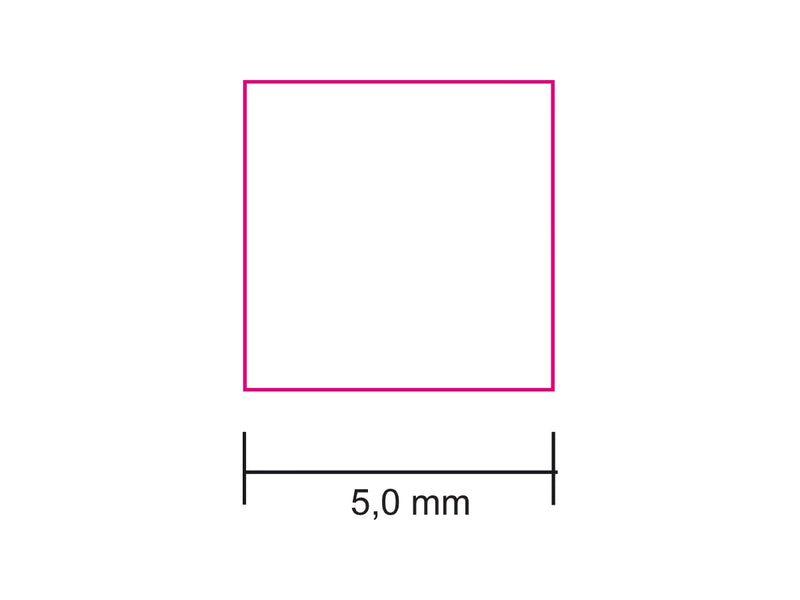

reaSquare standard micro irreversible temperature indicator technical drawing

Technical specifications

Material Paper
Measuring points1
Reaction time1 - 2 sec.
Protected (oil / water / solvent repelling)No
Dishwasher-safeNo
Storage conditionscool, dry

Mini indicator family

Reatec temperature measuring points are reduced to the essentials necessary for a reliable indication of exceeded temperature thresholds: a measuring point and a corresponding temperature labeling. Everything else is cut away in order to minimize size and reduce cost wherever possible.

reaPoint mini is specially designed for use in automated processes like manufacturing lines, since it is supplied on rolls. reaSquare pushes the family principle to the extreme, reduced to nothing more than a single measuring point without any labeling.

Temperature Range
Measuring Points
Material
Oil/Water/Solvent-Repelling
Dishwasher Safe
Dimensions
