SXP 10 (54,4- 104°C)
CHF0.00
VAT included
The reaStripe 10 protected / 01A.SXP.10 is a high-precision, self-adhesive temperature indicator with 10 defined measuring points on a paper base, protected by a high-quality plastic film. It responds within a range of 54,4°C to 104°C with a permanent color change. Ideal for demanding industrial applications, transport monitoring, solvent environments, and processes requiring documentation. Operates without power or sensors – reliably even in humid, oily, or greasy conditions. Optionally customizable with individual printing.
The irreversible temperature indicator reaStripe 10 protected / 01A.SXP.10 is a reliable, self-adhesive measuring strip with ten precisely calibrated temperature points. The robust protective film makes it resistant to water, oils, grease, and solvents – ideal for use in harsh industrial environments. Each strip clearly and permanently indicates when a defined temperature value has been exceeded – within 1–2 seconds, clearly visible and tamper-proof.
| Item no. | °C | °C | °C | °C | °C | °C | °C | °C | °C | °C |
|---|---|---|---|---|---|---|---|---|---|---|
| 01A.SXP.10 | 54,4 | 60 | 65,5 | 71 | 77 | 82 | 88 | 93 | 99 | 104 |
✅ 10 precise measuring points per temperature strip
The 01A.SXP.10 version covers the following temperature points: 54,5°C, 60°C, 65,5°C, 71°C, 77°C, 82°C, 88°C, 93°C, 99°C, 104°C. Perfect for applications requiring strict temperature control and documentation.
✅ Permanent color change – from white to black
The color change occurs irreversibly within 1–2 seconds as soon as a threshold temperature is exceeded. The indication remains visible – even if the temperature later drops again. This allows for clear detection of critical temperature events in retrospect.
✅ Self-adhesive strip – versatile application
The strip adheres reliably to metal, plastic, glass, or painted surfaces – even on uneven or cylindrical objects. Ideal for use on machinery, housings, pipelines, or containers.
✅ Protective film for use in extreme conditions
The transparent plastic film reliably shields the indicator from moisture, oils, grease, and aggressive substances. This makes it ideal for demanding industrial and mobile applications. High temperatures are withstood thanks to the heat-resistant Kapton® film.
✅ Supplied as individual strips
The temperature strips are delivered individually – compact, easy to handle, and ready to use.
✅ Paper-based with protective film – cost-effective and robust
The combination of a paper base and plastic cover provides an optimal balance of cost, durability, and performance – ideal for OEM projects, serial production, and temporary temperature monitoring.
✅ Customizable configuration
Optional with logo, QR/barcode, serial number, or custom design.
✅ Operates without power, sensors, or data loggers
No external power source required. The indicator is purely passive and operates reliably wherever electronic solutions may fail.
✅ Wide range of applications in industry & logistics
Mechanical engineering & plant monitoring – protection against overheating
Transport & logistics – in-transit temperature control
Chemicals & pharmaceuticals – resistant to solvents and oils
Cold chain monitoring – visual indication without data loggers
OEM manufacturing – customizable and suitable for series production
❓ Questions about the product?
No problem! Contact us – we’ll be happy to help you choose the optimal solution.
01A.SXP.10
Data sheet
- Material
- Paper/Kapton/Plastic
- Number of measuring points
- 10 measurement points
- Product protection
- protected
- Dishwasher safe
- no
- Accuracy
- 1% above 100 °C
±1 °C below 100 °C - Reaction time
- 1-2 sek.
- Customisation possible
- Yes
- Storage conditions
- Cool / dry

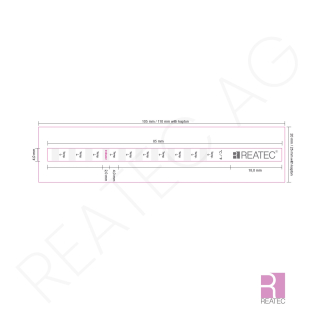

- Dimensions
- 20 x 105 mm
20 x 110 mm - Temperature
- 54,4 °C
54,4 °C
60 °C
65,6 °C
71 °C
77 °C
88 °C
93 °C
99 °C
104 °C
Download
The reaStripe 10 protected / 01A.SXP.10 is a high-precision, self-adhesive temperature indicator with 10 defined measuring points on a paper base, protected by a high-quality plastic film. It responds within a range of 54,4°C to 104°C with a permanent color change. Ideal for demanding industrial applications, transport monitoring, solvent environments, and processes requiring documentation. Operates without power or sensors – reliably even in humid, oily, or greasy conditions. Optionally customizable with individual printing.
