TEX 10 standard (121 - 224°C)
CHF0.00
VAT included

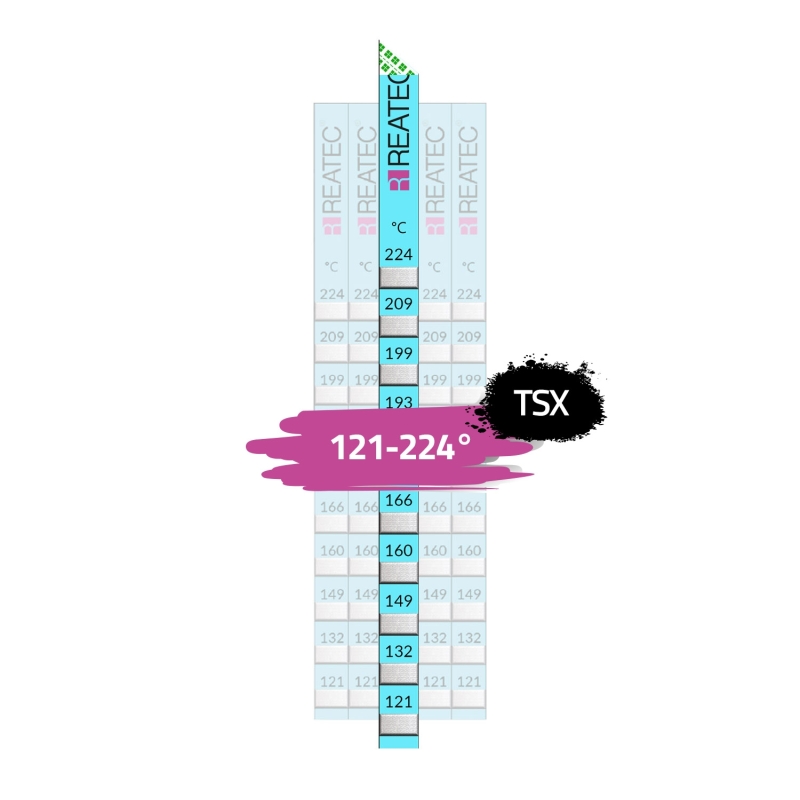

Irreversible temperature indicator reaTextile standard / TEX.TSX.10 with 10 measuring points from 121 °C to 224 °C: the reaTextile standard is a self-adhesive temperature measuring strip on a paper backing, specially developed for textile and industrial applications in the textile sector. Upon reaching the target temperature, a permanent colour change from white to black occurs within 1–2 seconds – reliable, precise and completely electronics-free. Ideal for long-term monitoring of surfaces, machinery and process flows in the textile industry, manufacturing and logistics.
The irreversible temperature indicator reaTextile standard combines robust materials with precise functionality for effective temperature monitoring on a variety of surfaces. Thanks to its sturdy aluminum backing, it can be reliably used on uneven or curved objects. Each indicator strip contains 10 individually calibrated measuring points that show a permanent colour change from white to black when the respective temperature is exceeded – completely without power, sensors or calibration.
The temperature measuring strips are supplied in booklets of 10 individual strips – perfect for easy handling and structured application in production or quality control. The irreversible display enables clear traceability of critical temperature events – including during storage and transport.
| Item No. | °C | °C | °C | °C | °C | °C | °C | °C | °C | °C |
|---|---|---|---|---|---|---|---|---|---|---|
| TEX.TSX.10 | 121 | 132 | 149 | 160 | 166 | 171 | 193 | 199 | 209 | 224 |
✅ 10 measuring points with colour change from white to black
Ideal for simultaneous monitoring of multiple thresholds along a process or component.
✅ Fast response within 1–2 seconds
Each measuring point reacts immediately to exceeding the defined temperature – tamper-proof and permanently visible.
✅ Paper backing – flexible and easy to apply
Suitable even on irregular surfaces such as textile cards, films or packaging.
✅ Self-adhesive and individually positionable
Can be applied directly without additional tools – on paper, film, cardboard or metal.
✅ Cost-efficient long-term monitoring
Ideal for series processes, textile production lines, logistics or storage processes with documented temperature control.
✅ Purely physical measuring principle – no calibration needed
No electronics, no power source – 100% passive and reliable.
Typical applications:
- Textile industry – process and quality monitoring
- Mechanical engineering – thermal load control
- Packaging & storage – visible proof during transport
- Automated manufacturing – in-process control during series production
- Test engineering – temperature-critical surface applications
❓Questions about the product? No problem! Contact us, we will be happy to advise you and help you make the best choice.
TEX.TSX.10
Data sheet
- Material
- Paper
- Number of measuring points
- 10 measurement points
- Product protection
- unprotected
- Dishwasher safe
- no
- Accuracy
- 1% above 100 °C
±1 °C below 100 °C - Reaction time
- 1-2 sek.
- Customisation possible
- Yes
- Storage conditions
- Cool / dry
- Dimensions
- 5 x 95 mm
- Temperature
- 121 °C
132 °C
149 °C
160 °C
166 °C
171 °C
193 °C
199 °C
209 °C
224 °C
Download
Irreversible temperature indicator reaTextile standard / TEX.TSX.10 with 10 measuring points from 121 °C to 224 °C: the reaTextile standard is a self-adhesive temperature measuring strip on a paper backing, specially developed for textile and industrial applications in the textile sector. Upon reaching the target temperature, a permanent colour change from white to black occurs within 1–2 seconds – reliable, precise and completely electronics-free. Ideal for long-term monitoring of surfaces, machinery and process flows in the textile industry, manufacturing and logistics.
