Notice: The picture shown is a sample temperature, it is for reference only, the actual product may vary.

reaStripe 10

professional
material aluminium
measuring points 10
protected no
dishwasher suitable no
accuracy 1% above 212 °F +/- 34°F below 212°F
reaction time 1-2 sek.
dimensions 5 x 95 mm
storage conditions cool, dry
customization possible no

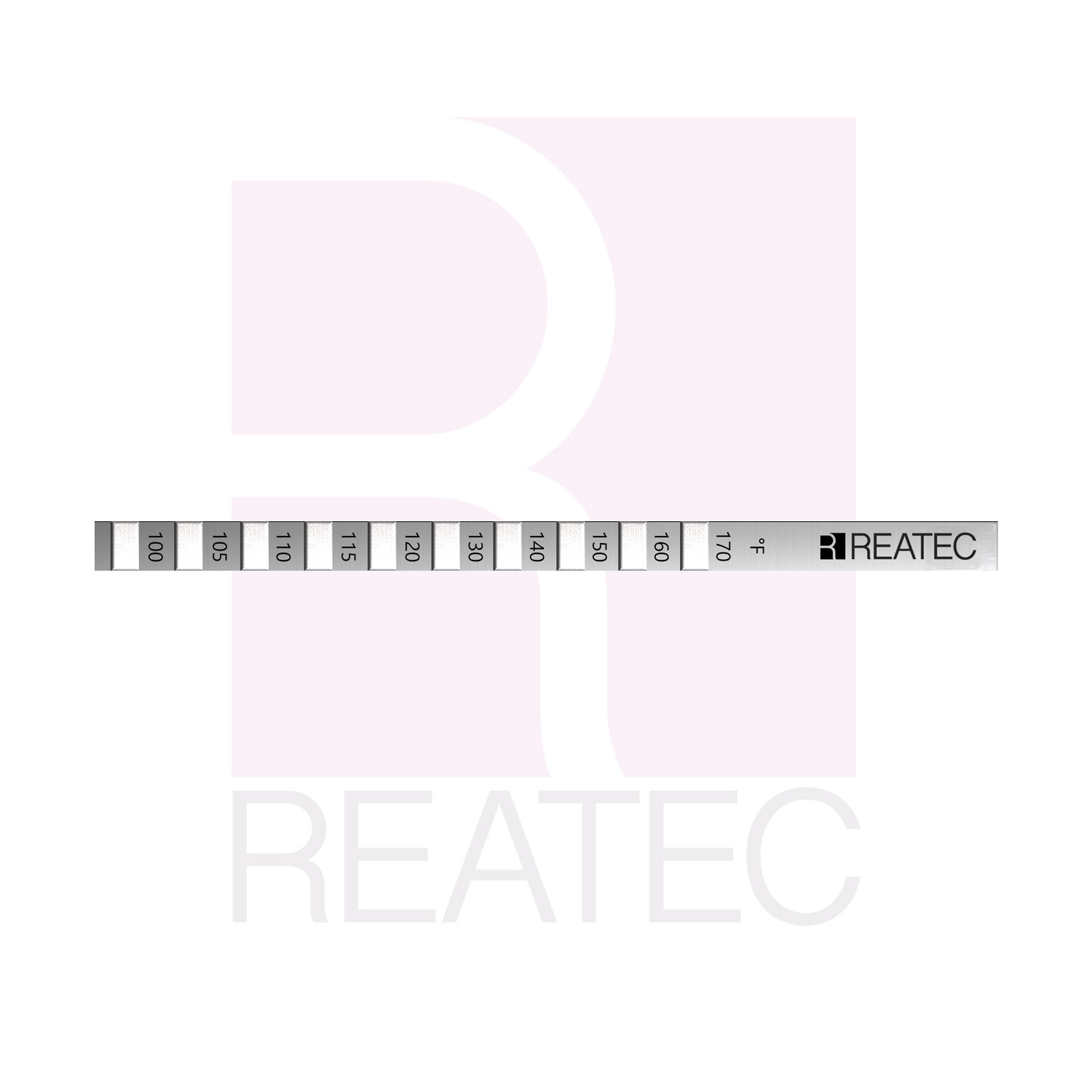

Our REATEC reaStripe 10 professional temperature indicators are based on a high-quality self-adhesive aluminum stripe on which temperature measuring points are applied.

Available
Product No. °F °F °F °F °F °F °F °F °F °F
001.SPX.10 100 104 110 115 120 130 140 150 160 170
01A.SPX.10 130 140 150 160 170 180 190 200 210 220
002.SPX.10 180 190 200 210 220 230 240 250 260 270
02A.SPX.10 230 240 250 260 270 280 290 300 310 320
003.SPX.10 280 290 300 310 320 330 340 350 360 370
03A.SPX.10 330 340 350 360 370 380 390 400 410 420
004.SPX.10 380 390 400 410 420 435 450 470 480 490
041.SPX.10 390 400 410 420 435 450 470 480 490 500
042.SPX.10 435 440 445 455 465 470 480 490 500 505
062.SPX.10 144 147 150 154 158 161 165 168 172 176
082.SPX.10 180 183 187 190 194 197 201 204 208 212
102.SPX.10 215 219 222 226 230 234 237 240 244 248
214.SPX.10 415 425 435 440 450

Features

  • self-adhesive temperature measuring strips
  • robust aluminum carrier
  • 10 measuring points per indicator
  • permanent color change from grey to black
  • long-term monitoring on surfaces of any kind
  • narrow graduations available

Beschreibung

Temperature measuring stripes in use:

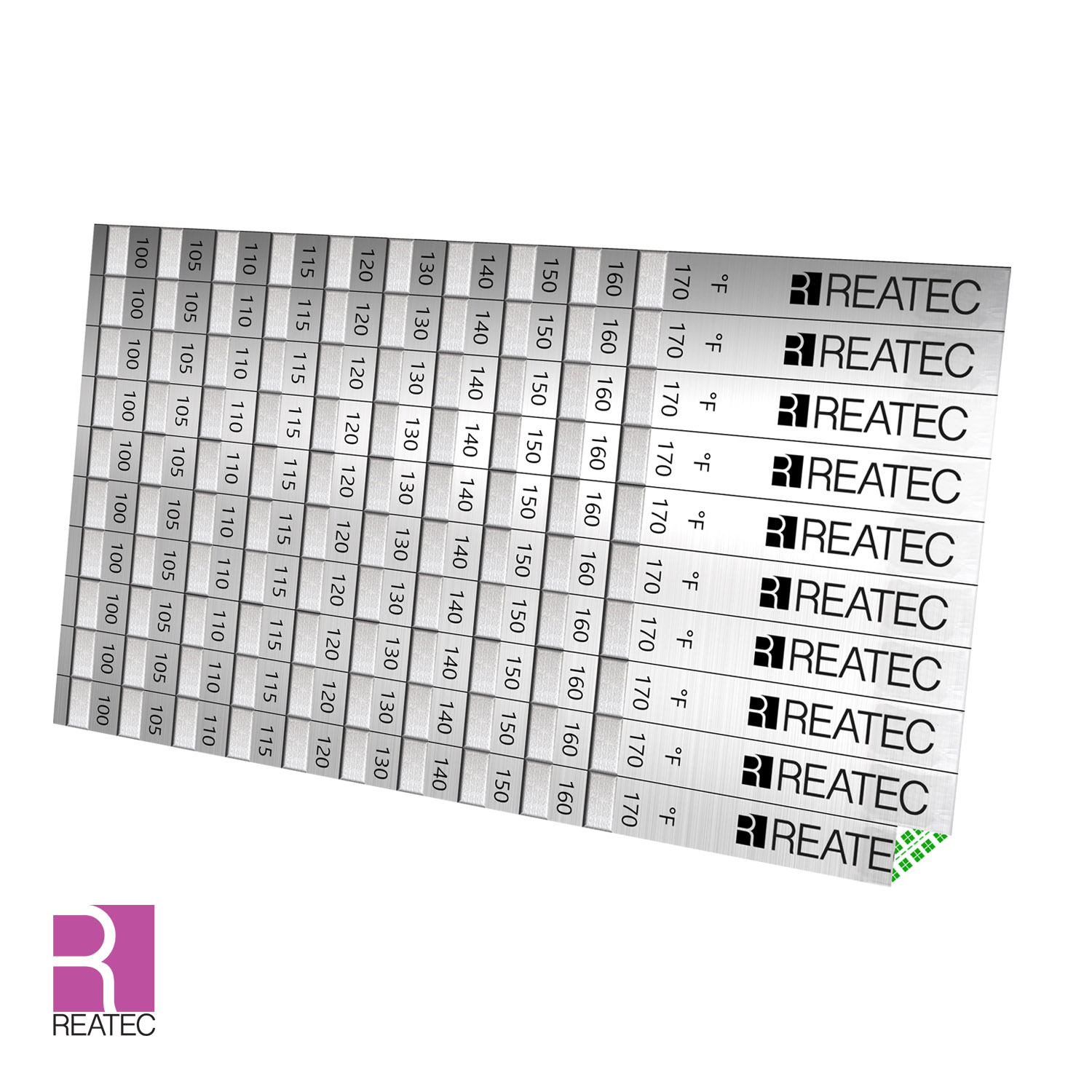

Our temperature measuring stripes are supplied in booklets with 10 individual indicator stripes in each. A pack of 100 pieces consists of 10 booklets. They can be easily attached to the object, the temperature of which needs to be measured. Thanks to the aluminum carrier and very slim design, they are also suitable for uneven and round objects.

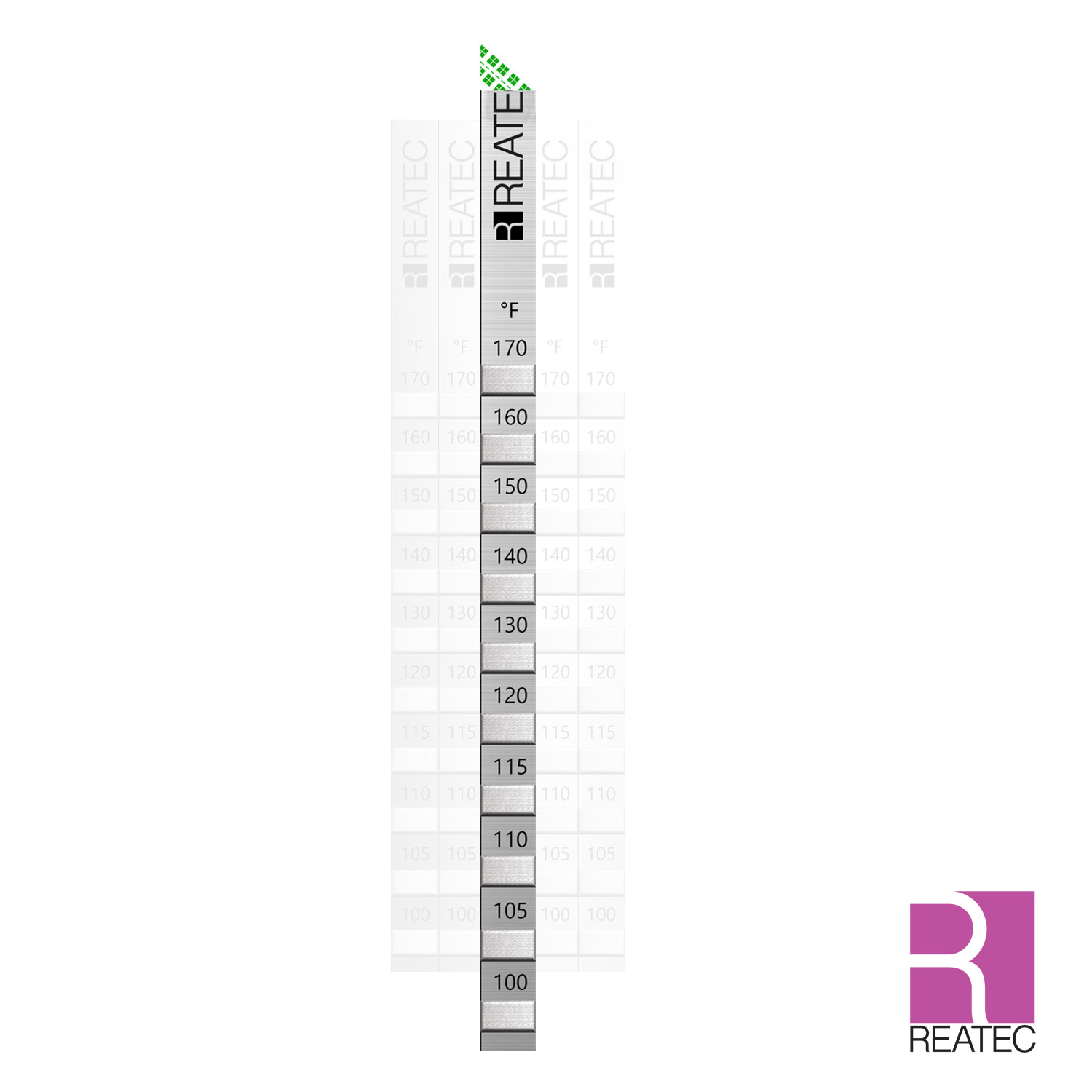

On the temperature measuring stripes there is a scale with single uncovered measuring points. As soon as a specified temperature is exceeded, the temperature measuring points in the respective boxes will change color within 1 to 2 seconds.

The color change is irreversible; once the temperature is exceeded, the temperature measuring points do not change back to the original color, even if the temperature drops again. Critical temperature fluctuations will be indicated even after a long time period e.g., during storage and transportation.

Sonstiges

This indicator is characterized by its strength, very good thermal conductivity, and flexibility. To achieve the fastest and most accurate response time, the measuring points are not covered.

product 001.SPX.10.XXX store in a refrigerator

custom design on request
