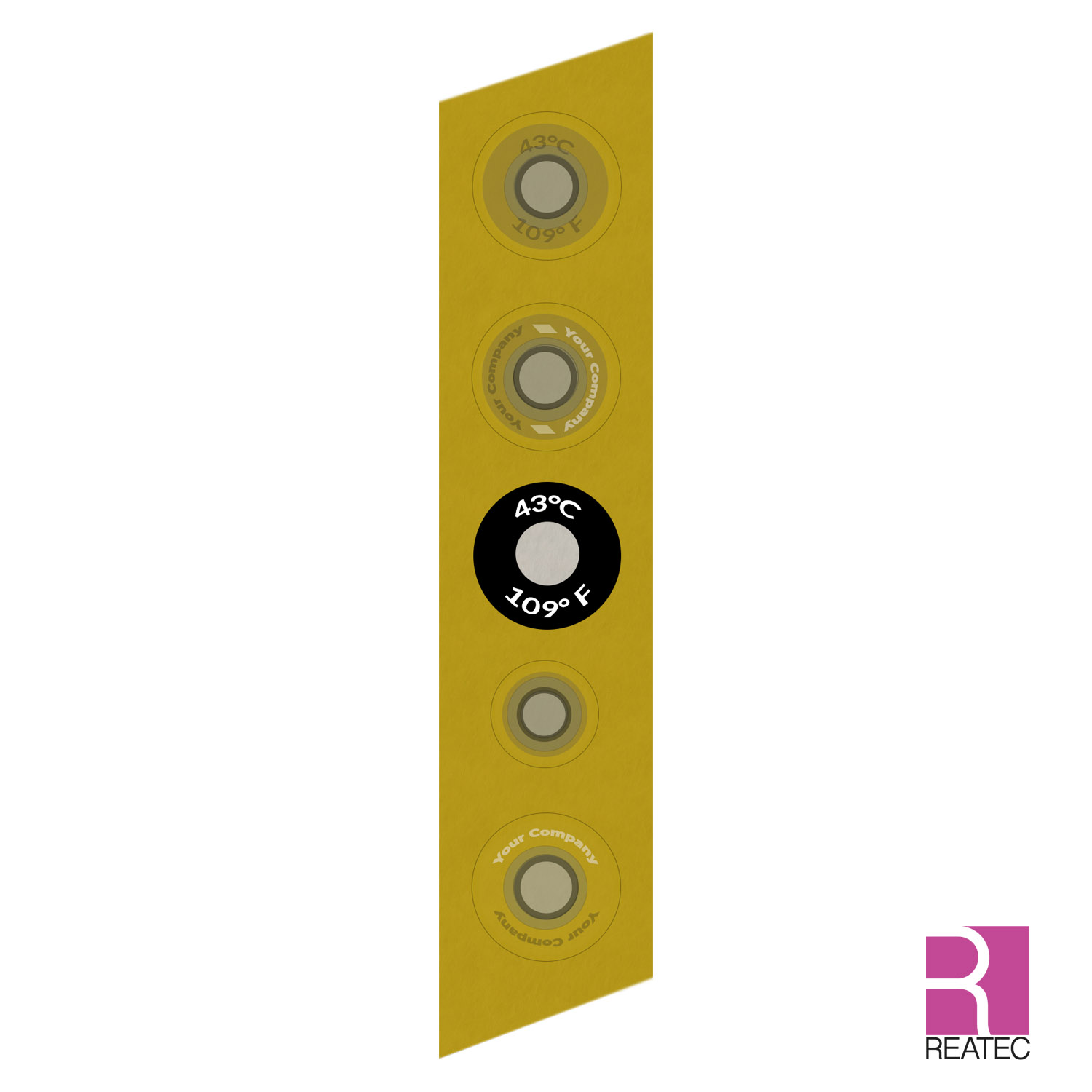

Notice: The picture shown is a sample temperature, it is for reference only, the actual product may vary.

reaPoint

standard
material plastic
measuring points 1
protected yes
dishwasher suitable no
accuracy 1% above 100°C +/- 1°C below 100°C
reaction time 1-2 sec.
dimensions 12/18/21 mm*
storage conditions cool, dry
customization possible yes

Our REATEC reaPoint standard temperature indicators are based on a self-adhesive plastic carrier, which is protected by a PET film. To achieve a fast and accurate response time, even within a difficult surrounding environment, the measuring points are covered.

Available
Product No. °C
037.PSP.01.XXX* 37,8
040.PSP.01.XXX* 40,6
043.PSP.01.XXX* 43,3
046.PSP.21.XXX 46
049.PSP.21.XXX 49
054.PSP.21.XXX 54,4
058.PSP.21.XXX 58
060.PSP.21.XXX 60
062.PSP.21.XXX 62
064.PSP.21.XXX 64
065.PSP.21.XXX 65,6
068.PSP.21.XXX 68
071.PSP.21.XXX 71
075.PSP.21.XXX 75
077.PSP.21.XXX 77
079.PSP.21.XXX 79
080.PSP.21.XXX 80
082.PSP.21.XXX 82
088.PSP.21.XXX 88
090.PSP.21.XXX 90
093.PSP.21.XXX 93
096.PSP.21.XXX 96
099.PSP.21.XXX 99
102.PSP.21.XXX 102
104.PSP.21.XXX 104
108.PSP.21.XXX 108
110.PSP.21.XXX 110
114.PSP.21.XXX 114
116.PSP.21.XXX 116
121.PSP.21.XXX 121
127.PSP.21.XXX 127
132.PSP.21.XXX 132
138.PSP.21.XXX 138
143.PSP.21.XXX 143
149.PSP.21.XXX 149
154.PSP.21.XXX 154
160.PSP.21.XXX 160
166.PSP.21.XXX 166
171.PSP.21.XXX 171
177.PSP.21.XXX 177
182.PSP.21.XXX 182
188.PSP.21.XXX 188

Features

  • self-adhesive temperature measuring strips
  • permanent color change from grey to black
  • for use in the environment of water
  • for use in the environment of oils
  • for use in the environment of greases
  • for use in the environment of solvents
  • 1 measuring point per indicator
  • wide range of temperatures
  • also customizable
  • robust PET protective film

Beschreibung

Temperature measuring point in use:

Our temperature measuring points are supplied on rolls. They are very easy to apply on the desired measuring object and are highly adhesive even under strong external loads.

As soon as the specified temperature is exceeded, the temperature measuring point will change color within 1 to 2 seconds.

The color change is irreversible; once the temperature is exceeded, the temperature measuring points do not change back to the original color, even if the temperature drops again. Critical temperature fluctuations will be indicated even after a long time period e.g., during storage and transportation.

Sonstiges

This indicator is characterized by its water and oil repellency, strength, high density, for the fastest possible response time. The indicators are supplied on rolls and are designed for automated application and high volumes.

* temperatures 37°C - 43°C store in a refrigerator
