Notice: The picture shown is a sample temperature, it is for reference only, the actual product may vary.
reaMini
professional
| material | aluminum | |
| measuring points | 1 | |
| protected | no | |
| dishwasher suitable | no | |
| accuracy | 1% above 100 °C | +/- 1°C below 100°C |
| reaction time | 1-2 sec. | |
| dimensions | 5x7 mm | |
| storage conditions | cool, dry | |
| customization possible | no |
Our REATEC reaMini professional temperature indicator points are based on a self-adhesive aluminum carrier of the highest quality, on which a single temperature measuring point is applied.
Available
Datasheet (PDF) | reaMini professional | Product No. | °C |
|---|---|
| 037.MPX.01.XXX* | 37,8 |
| 040.MPX.01.XXX* | 40,6 |
| 043.MPX.01.XXX* | 43,3 |
| 046.MPX.01.XXX | 46 |
| 049.MPX.01.XXX | 49 |
| 054.MPX.01.XXX | 54,4 |
| 060.MPX.01.XXX | 60 |
| 065.MPX.01.XXX | 65,5 |
| 071.MPX.01.XXX | 71 |
| 075.MPX.01.XXX | 75 |
| 077.MPX.01.XXX | 77 |
| 082.MPX.01.XXX | 82 |
| 088.MPX.01.XXX | 88 |
| 093.MPX.01.XXX | 93 |
| 099.MPX.01.XXX | 99 |
| 104.MPX.01.XXX | 104 |
| 110.MPX.01.XXX | 110 |
| 116.MPX.01.XXX | 116 |
| 121.MPX.01.XXX | 121 |
| 127.MPX.01.XXX | 127 |
| 132.MPX.01.XXX | 132 |
| 138.MPX.01.XXX | 138 |
| 143.MPX.01.XXX | 143 |
| 149.MPX.01.XXX | 149 |
| 154.MPX.01.XXX | 154 |
| 160.MPX.01.XXX | 160 |
| 166.MPX.01.XXX | 166 |
| 171.MPX.01.XXX | 171 |
| 177.MPX.01.XXX | 177 |
| 182.MPX.01.XXX | 182 |
| 188.MPX.01.XXX | 188 |
| 193.MPX.01.XXX | 193 |
| 199.MPX.01.XXX | 199 |
| 204.MPX.01.XXX | 204 |
| 209.MPX.01.XXX | 209 |
| 216.MPX.01.XXX | 216 |
| 224.MPX.01.XXX | 224 |
| 227.MPX.01.XXX | 227 |
| 232.MPX.01.XXX | 232 |
| 235.MPX.01.XXX | 235 |
| 243.MPX.01.XXX | 243 |
| 245.MPX.01.XXX | 245 |
| 249.MPX.01.XXX | 249 |
| 254.MPX.01.XXX | 254 |
| 255.MPX.01.XXX | 255 |
| 260.MPX.01.XXX | 260 |
| 261.MPX.01.XXX | 261 |
| 264.MPX.01.XXX | 264 |
Features
Beschreibung
Temperature measuring point in use:

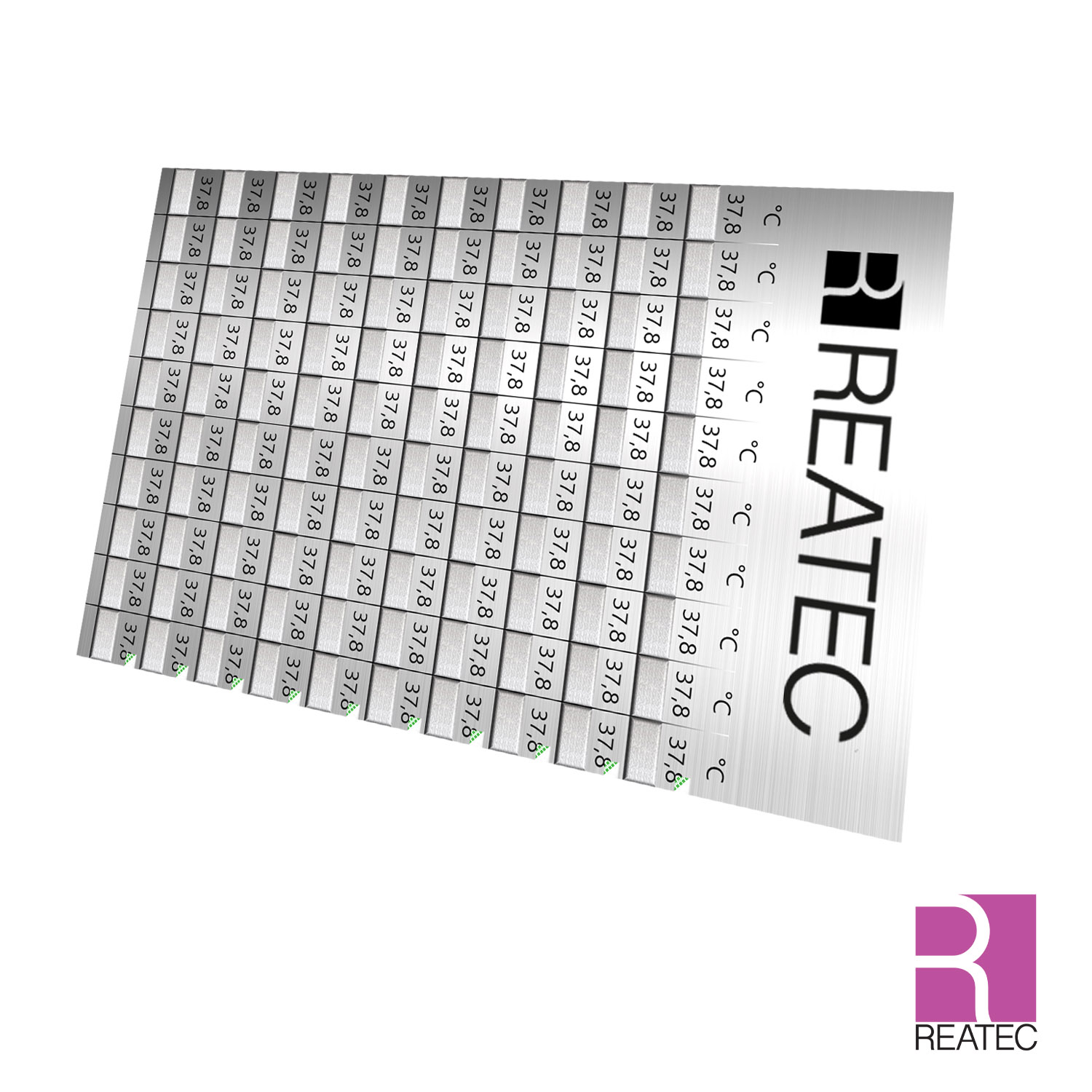

Our temperature measuring points are supplied in booklets of 100 individual indicator points each. One booklet contains a pack of 100 pieces. They can be easily attached to the object required to be measured.
Thanks to the small size, they are suitable for uneven round objects and small areas. On the indicator there is a single, uncovered measuring point. As soon as the specified temperature is exceeded, the temperature measuring point will change color within 1 to 2 seconds.
The color change is irreversible; once the temperature is exceeded, the temperature measuring points do not change back to the original color, even if the temperature drops again. Critical temperature fluctuations will be indicated even after a long time period e.g., during storage and transportation.
Sonstiges
This indicator is characterized by its strength, very good thermal conductivity, and flexibility.
Due to their small size, the indicators can be placed on even the smallest components. To achieve the fastest and most accurate response time, the measuring points are not covered.
* temperatures 37,8°C - 43,3°C store in a refrigerator
Custom design on request
